Rudder

33 photos. Photos with a log post open that post; the others open large.

The whole model 63Keel and bulkheads 137Decks, gratings and hatches 303Hull planking and gun ports 387Copper 90Stern and quarter galleries 156Bow, head and mouldings 109Rudder 33Guns and carronades 200Capstan, pumps, wheel, binnacle, belfry 136Rope and blocks 29Hammock cranes and nettings 14Tools, wood and materials 97Drawings, books and screens 21

September 2019

The shortened moulding on the cutting mat The walnut supplied next to the laser-cut moulding: a big colour difference

October 2019

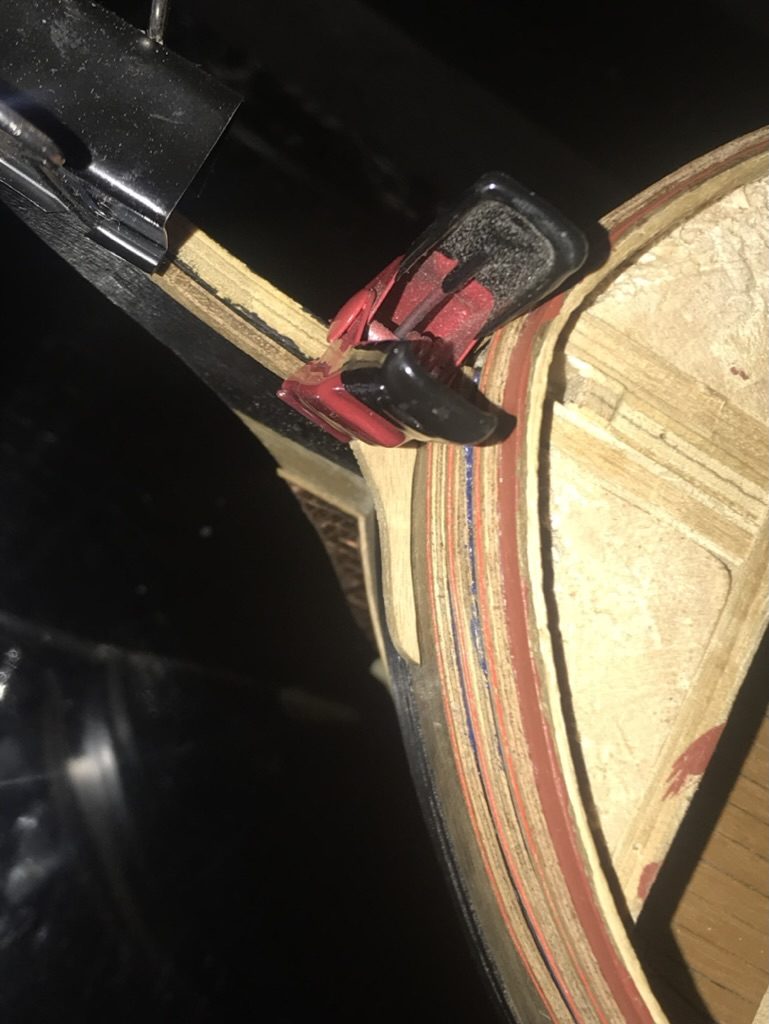

Build photo of the HMS Diana model, 2019-10-07 Build photo of the HMS Diana model, 2019-10-19 The headrails from below Detail of the bow, with clamps

November 2019

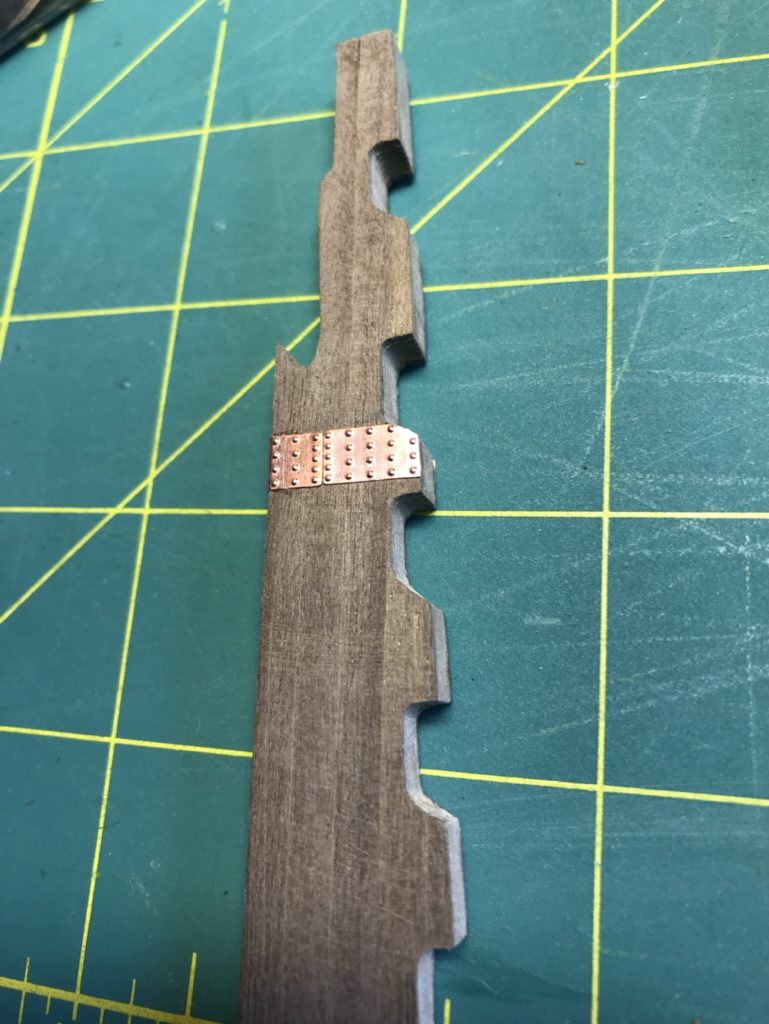

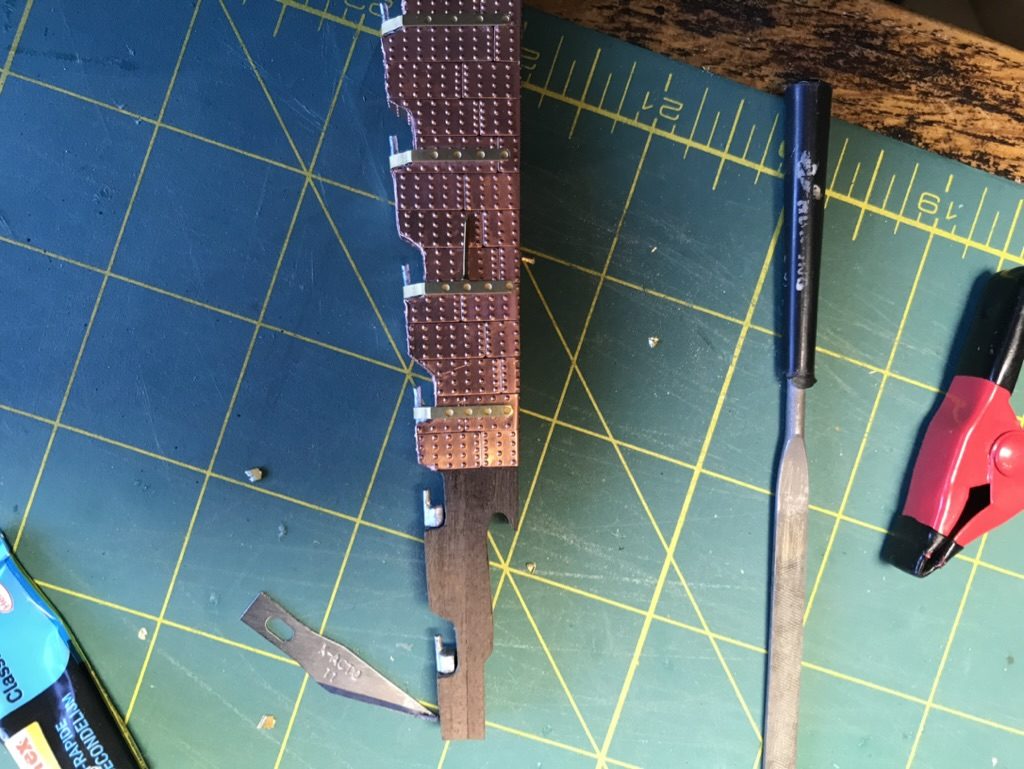

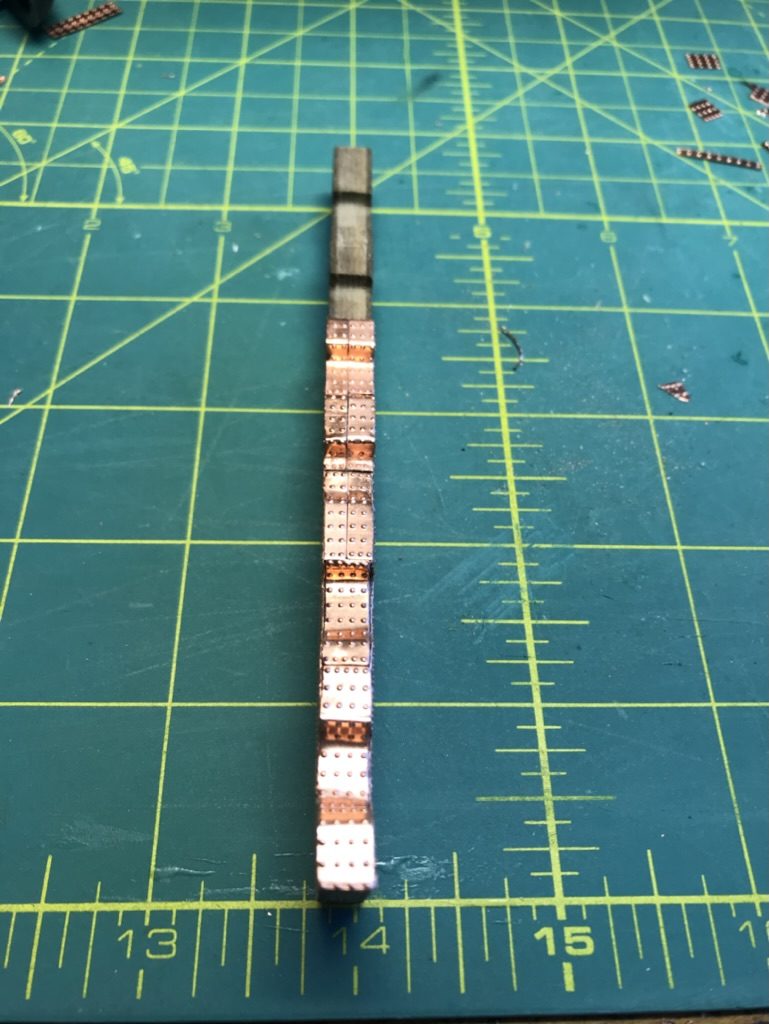

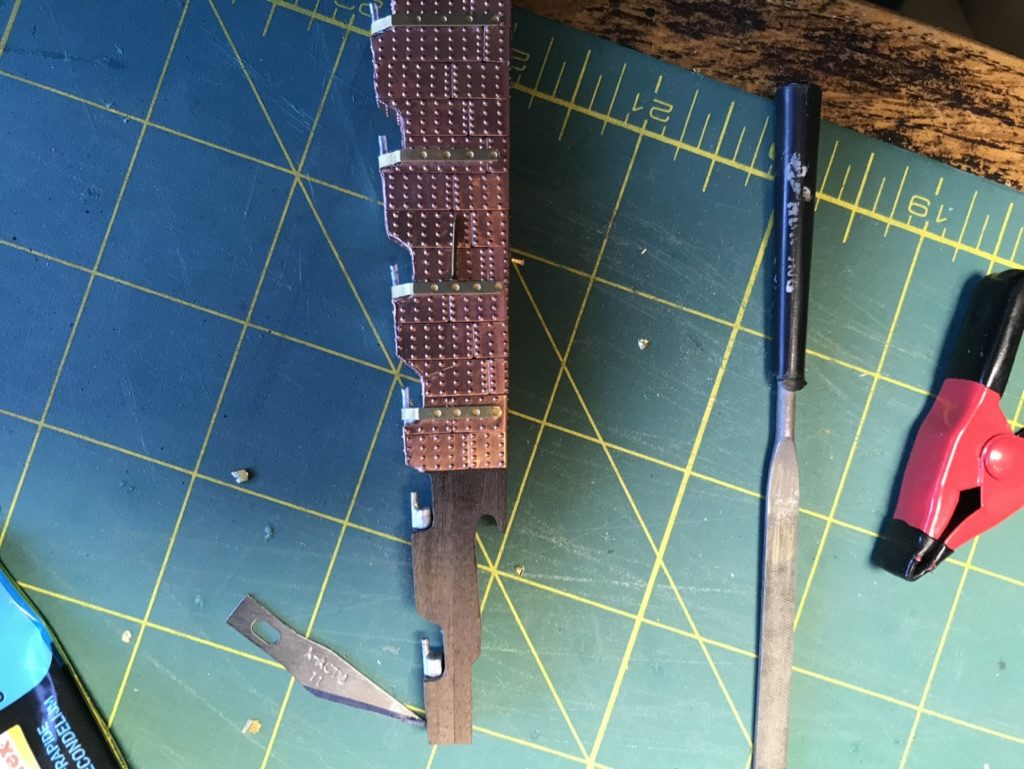

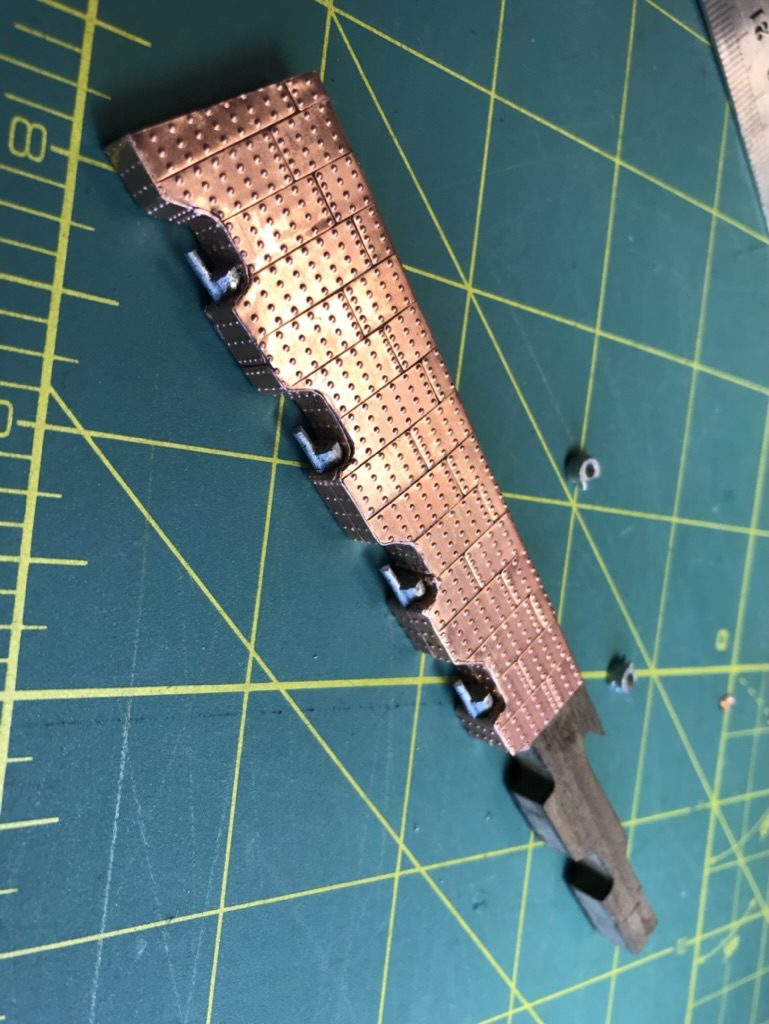

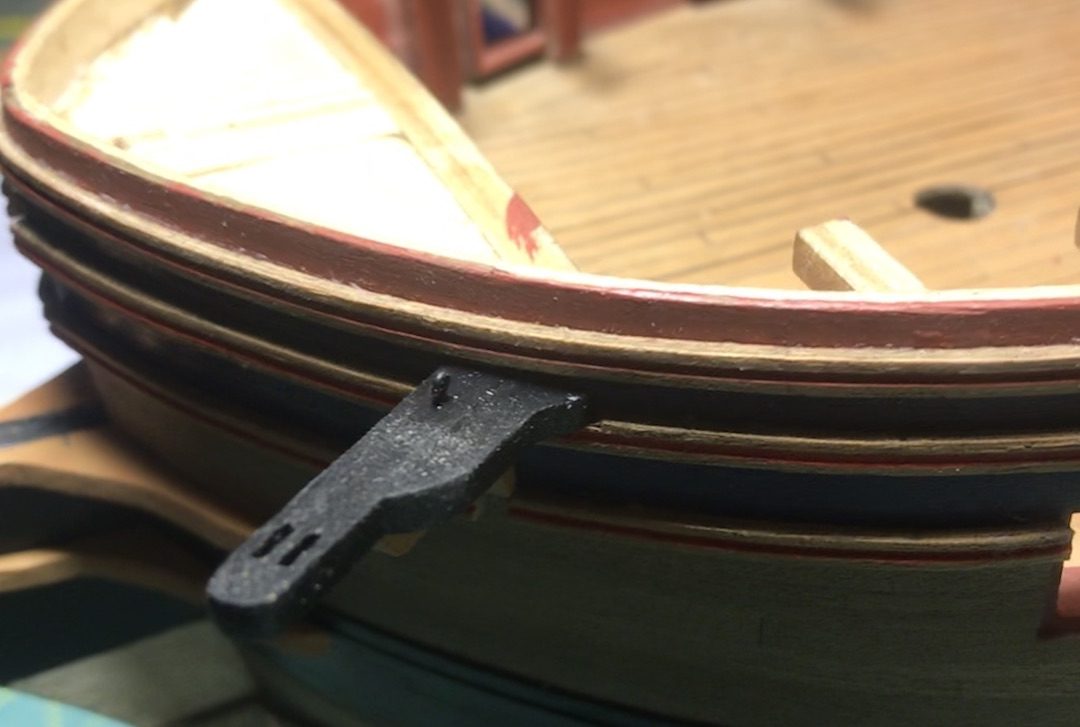

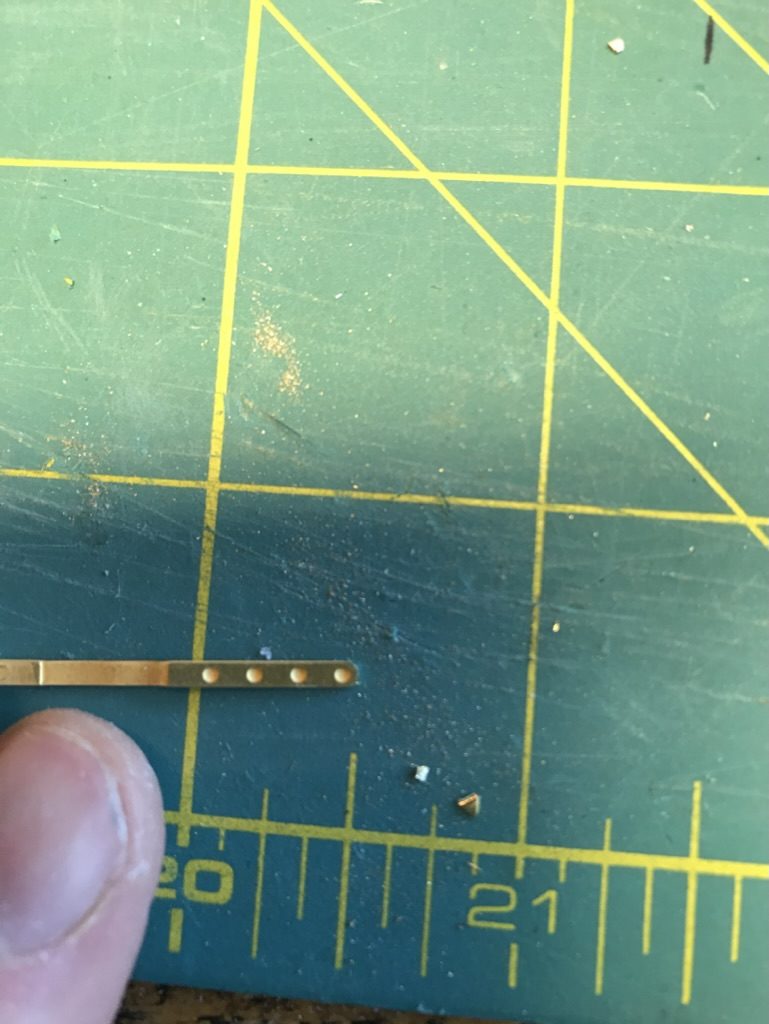

Top view with the original pieces laid on top: that much was missing Build photo of the HMS Diana model, 2019-11-09 The catheads fitted, seen from above Build photo of the HMS Diana model, 2019-11-23 The rudder held against the sternpost Build photo of the HMS Diana model, 2019-11-24 Build photo of the HMS Diana model, 2019-11-24 The pintles in their holes, with holes cut in the copper The bottom edge of the rudder slopes upwards The small triangle The end result: all pintles in and the bottom edge level with the keel The first pintle strap glued on, with the pre-punched holes Build photo of the HMS Diana model, 2019-11-30 Build photo of the HMS Diana model, 2019-11-30 Build photo of the HMS Diana model, 2019-11-30 All the pintle straps on the rudder, with nails

December 2019

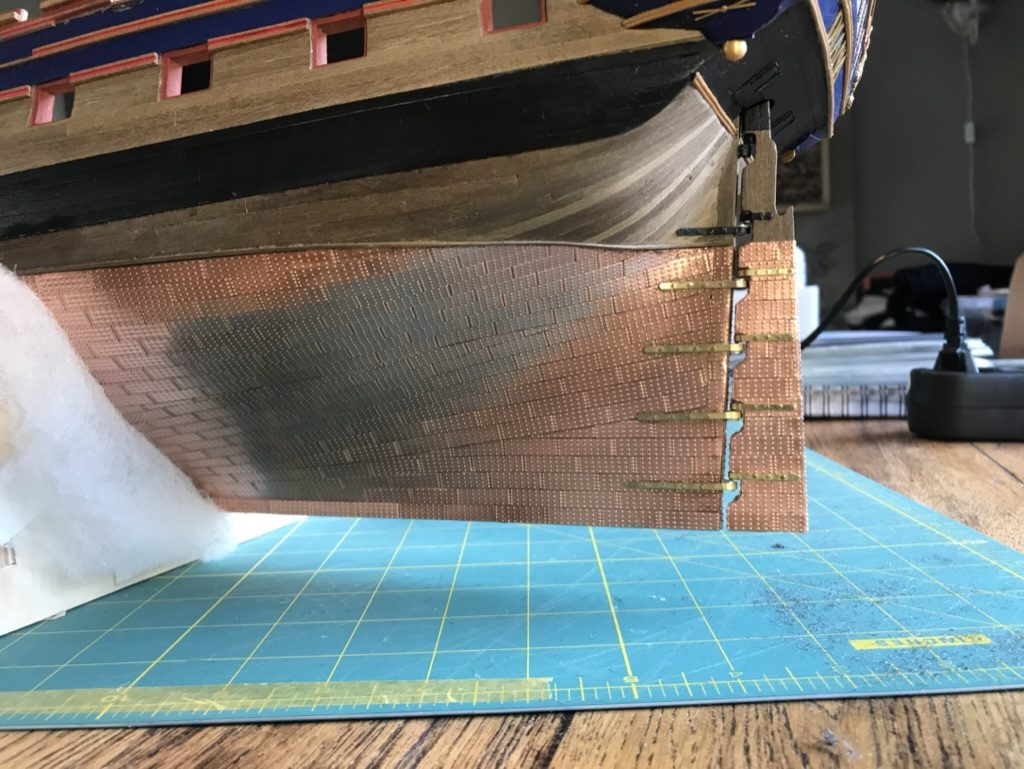

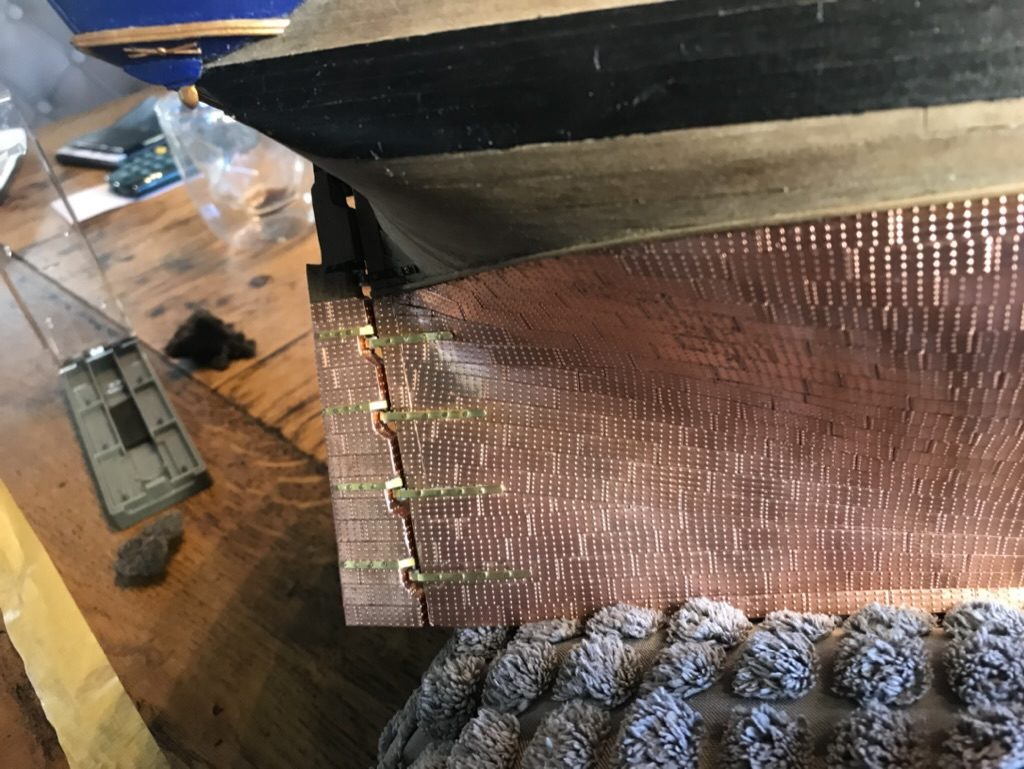

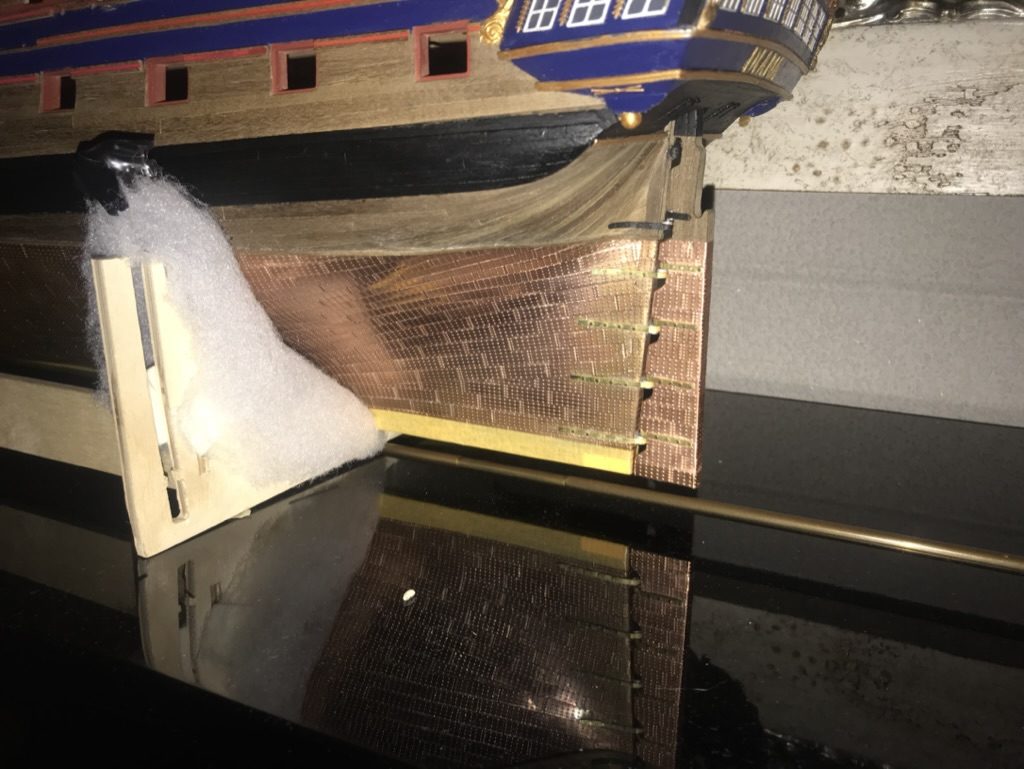

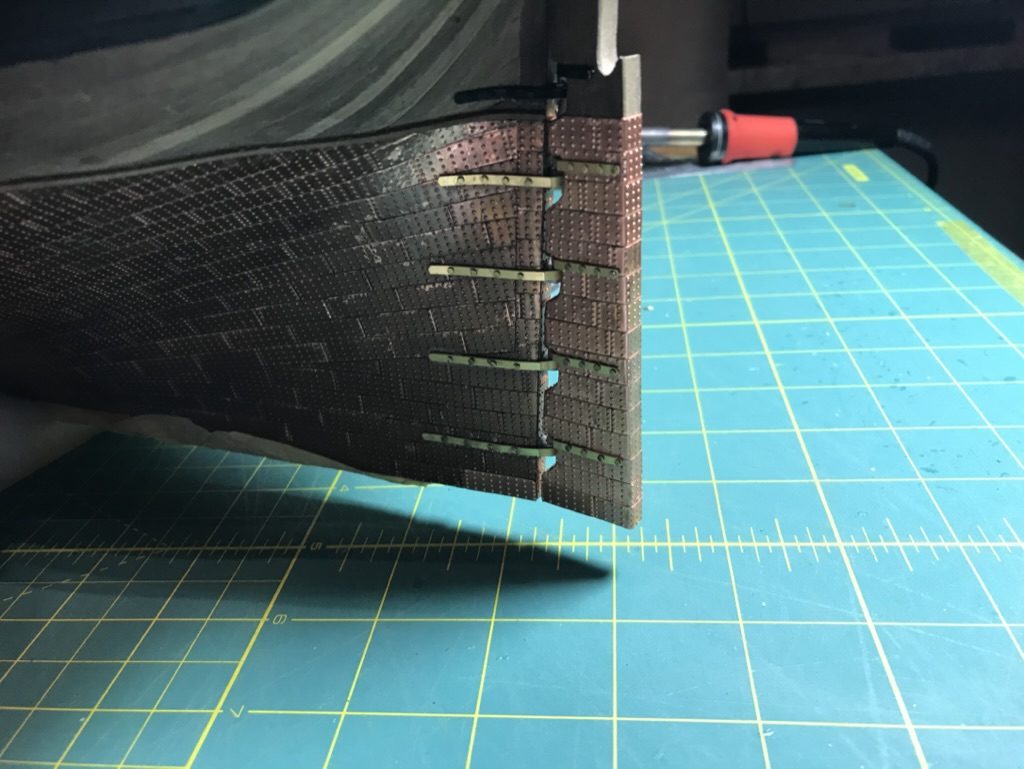

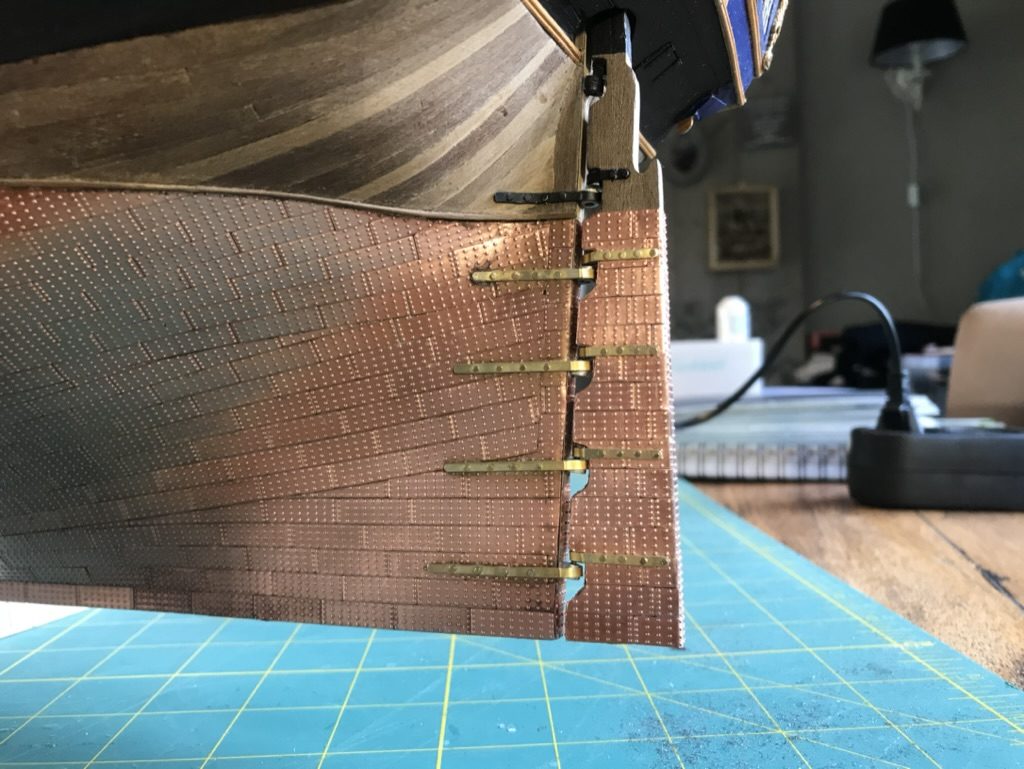

Build photo of the HMS Diana model, 2019-12-07 The rudder hung, with the gudgeons on the hull and the white marks on the copper The small template for the position of the openings Build photo of the HMS Diana model, 2019-12-08 Painted black: you can hardly see them any more Build photo of the HMS Diana model, 2019-12-14 Build photo of the HMS Diana model, 2019-12-14 Build photo of the HMS Diana model, 2019-12-14 Before: the sternpost with the light glue marks on the copper After: scrubbed with steel wool and polished

August 2023

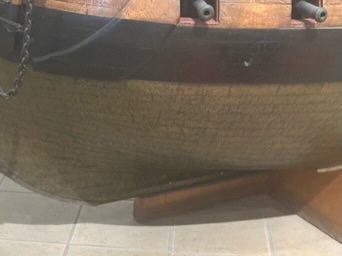

Build photo of the HMS Diana model, 2023-08-04
