Build log · Phase 11, Ship's wheel and binnacle

Compass and lantern

30 December 2021

Herby63 made his lamp and compasses from styrene; I had a go at tinkering myself first. Here the first little attempt at a compass. Quite pleased already. OK, to be fair, it’s attempt two. Attempt one failed miserably. The compass has to fit in the 6 mm deep cabinet, so it can’t be much more than 5 mm in diameter. I could barely find how others solve this, so it’s mostly trial and error. Now for number two.

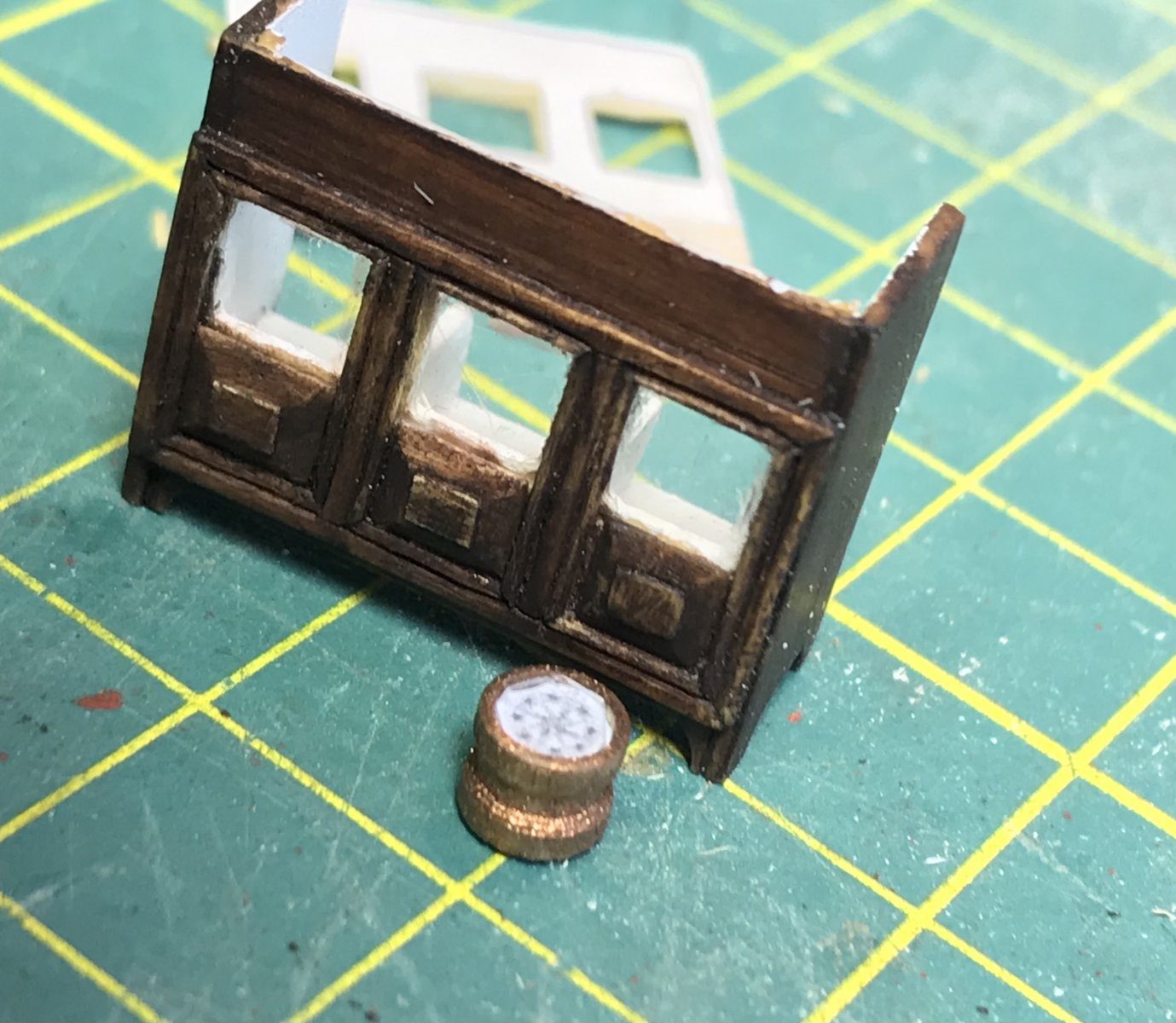

The first compass next to the binnacle
The first compass next to the binnacle

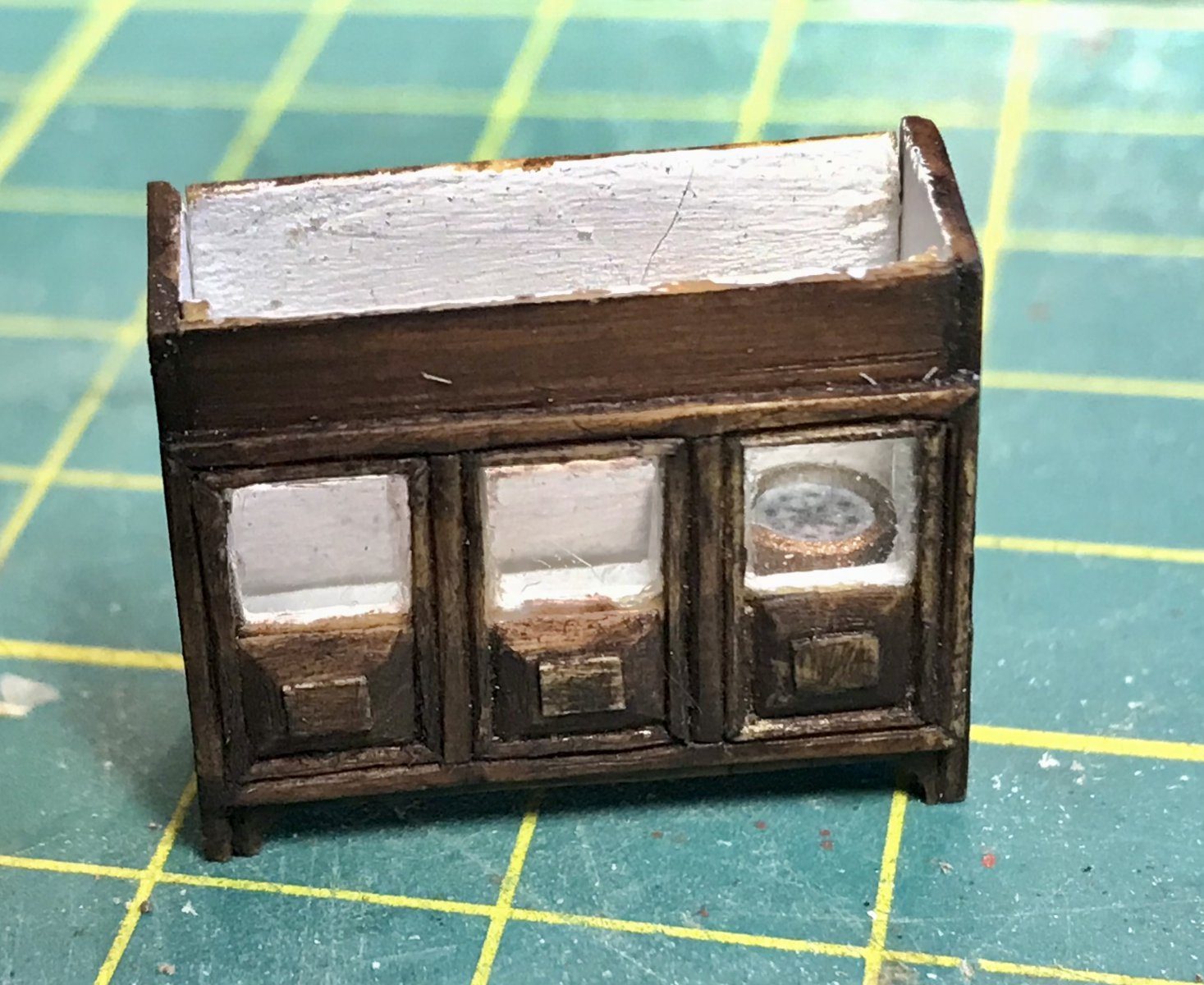

The compass in place in the right-hand window
The compass in place in the right-hand window

And then the lantern. Hmm, I can’t get it any better than this. It’s made of photo paper with a small copper lid. I cut the square openings with a cutting plotter; cutting by hand was far too small. The lantern goes in the middle window, the compasses on either side. Because the top of the binnacle sits loose, they drop in from above. Pingu57 and Hans Groenenberg thought it turned out well, and for something this small that is reassuring.

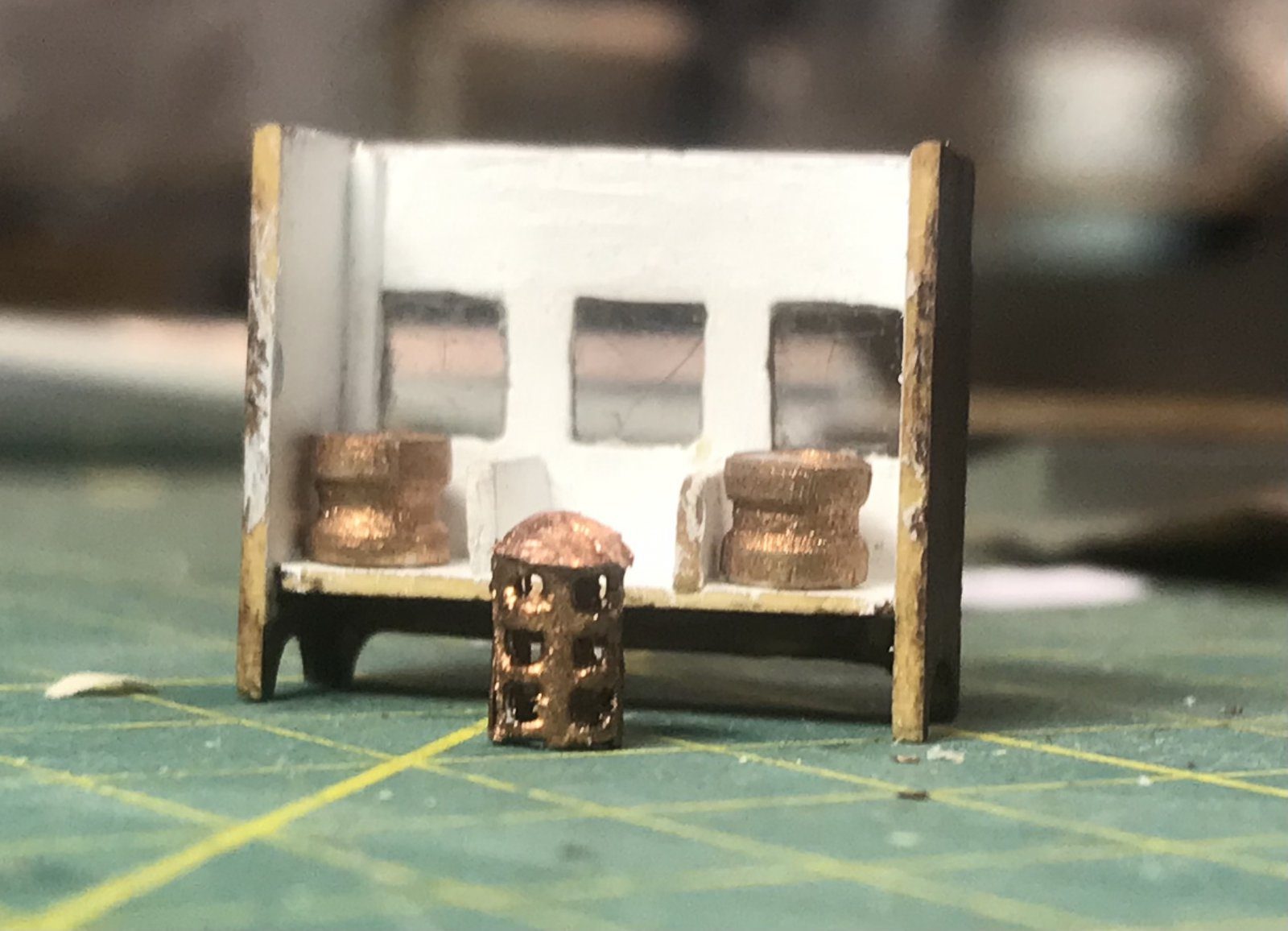

The open binnacle with the lantern and the two compasses in front of it
The open binnacle with the lantern and the two compasses in front of it

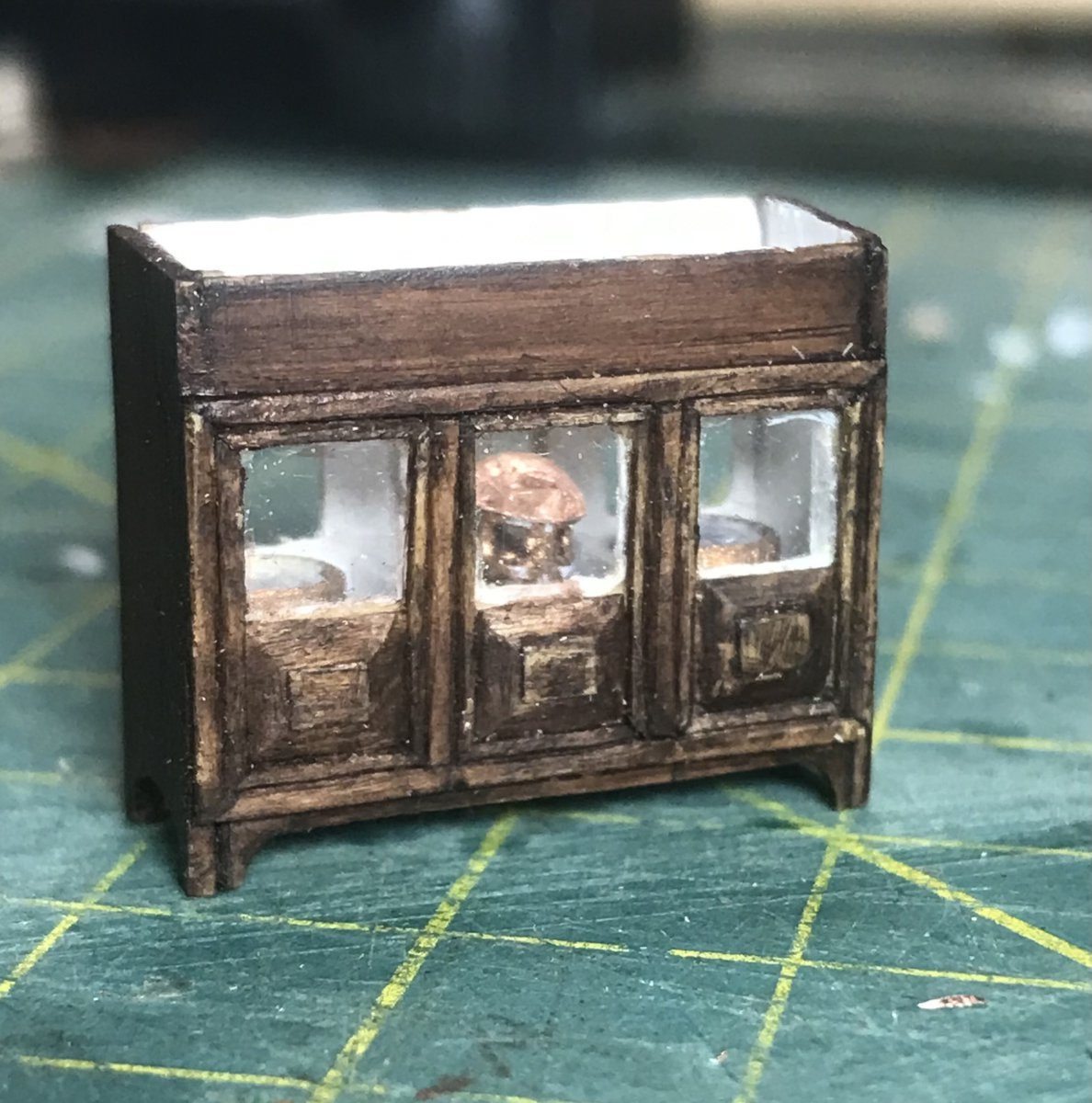

The lantern in the middle window, the compasses on either side
The lantern in the middle window, the compasses on either side
