Build log · Phase 9, Planking the upper deck

The deck is finished

30 December 2020 · Milestone · Problem and fix

The deck is finished. The symmetrical joggling worked. Unfortunately, as a result I didn’t quite come out in line at the waist and the forecastle, but that is the only thing. Otherwise I am very pleased. The thread as caulking seam has, as I said, suited me very well. I think it was also less work than blackening all the strips with a pencil or marker.

I have scraped the whole deck twice, to remove all glue residue and spots. In the photos you always discover new spots, but I will touch those up.

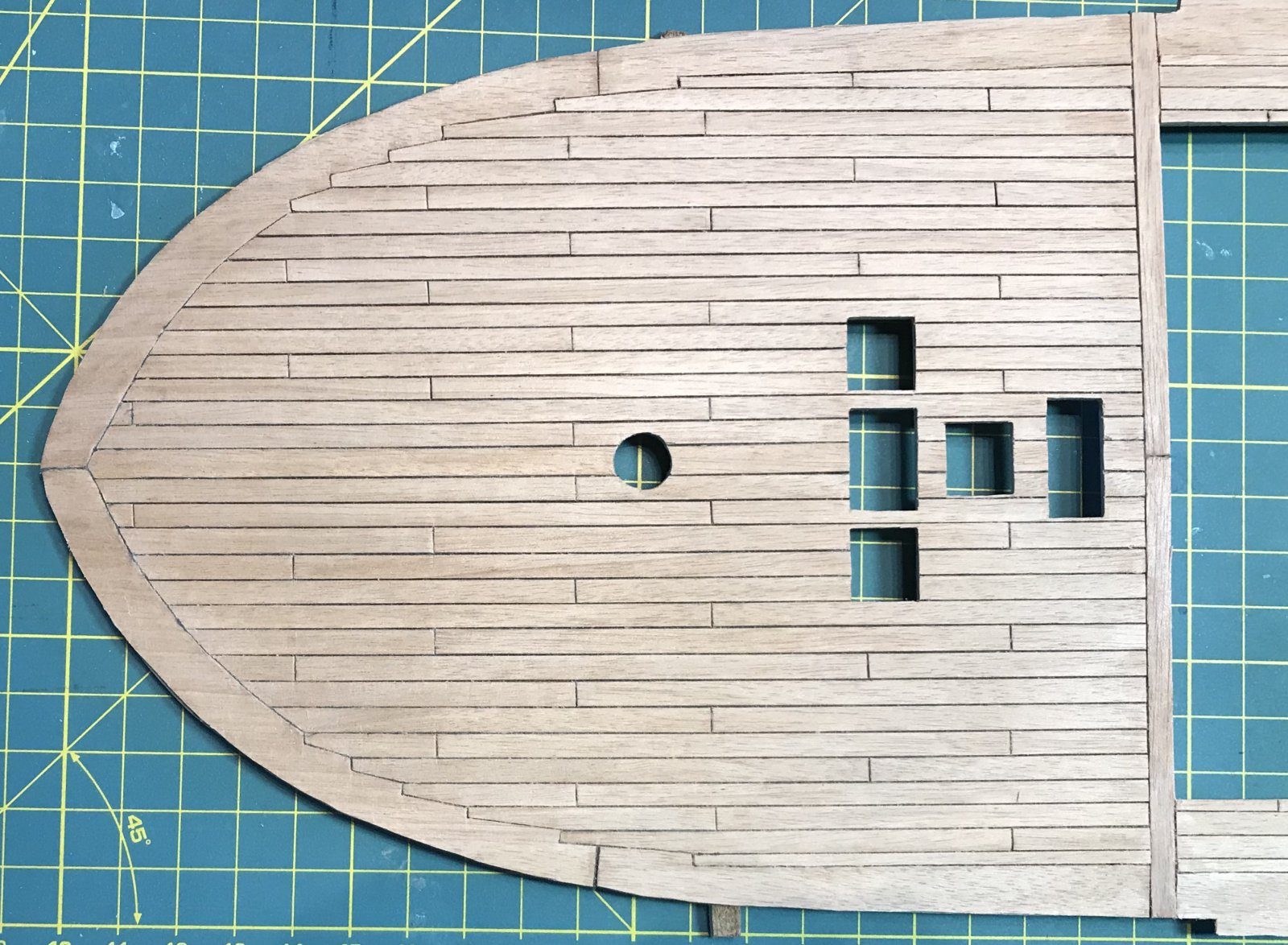

The fully planked upper deck, scraped twice
The fully planked upper deck, scraped twice

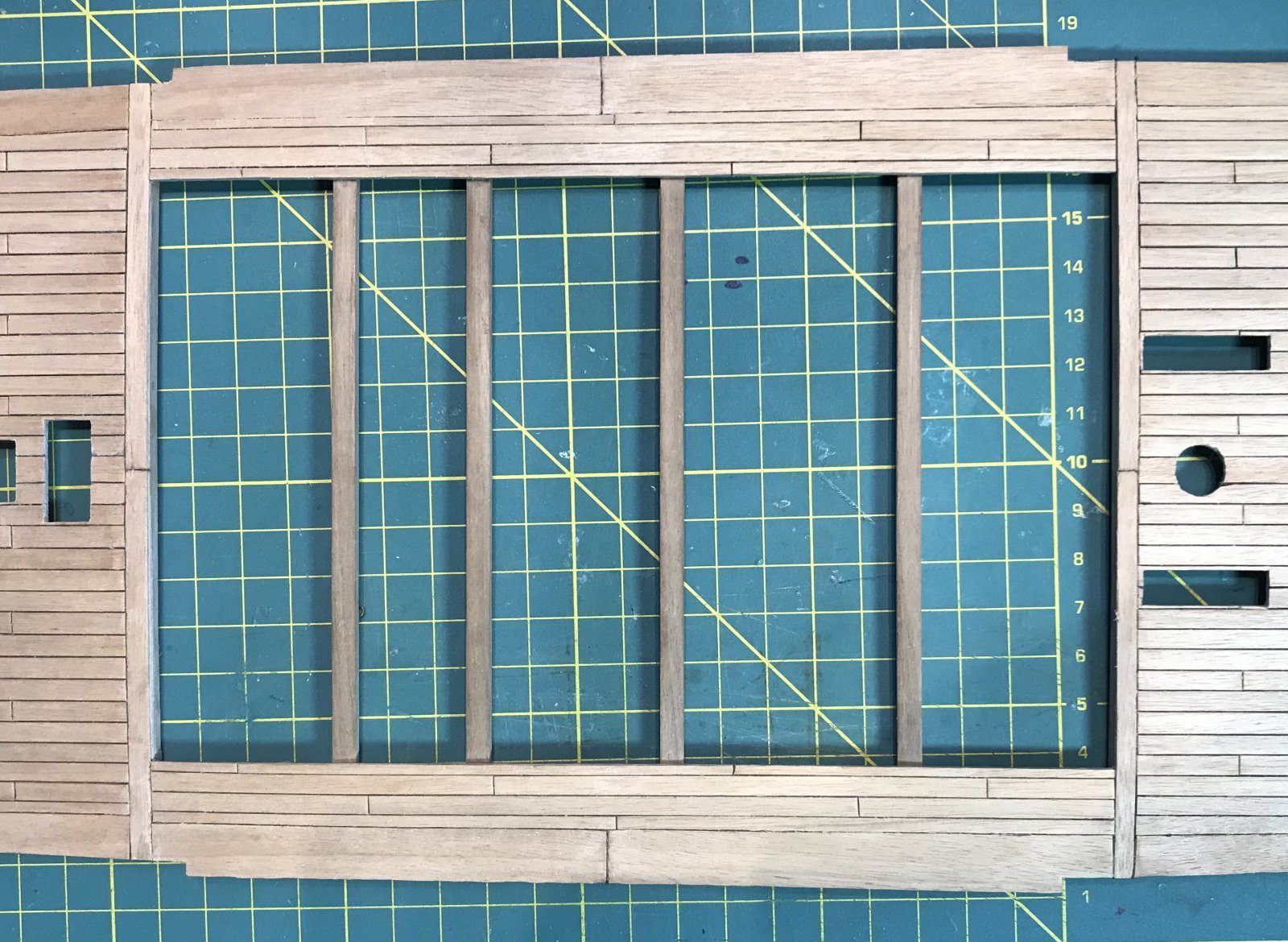

The deck from another angle
The deck from another angle

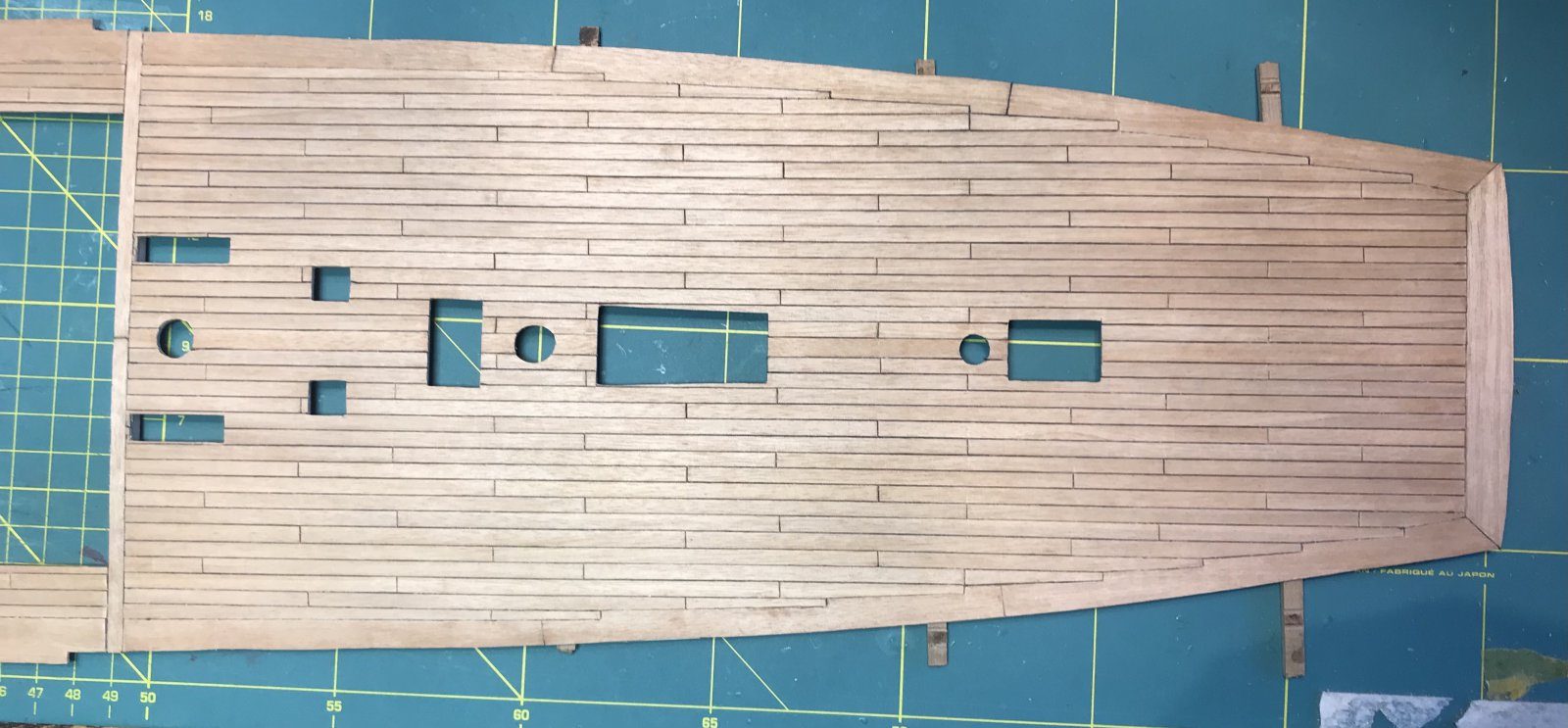

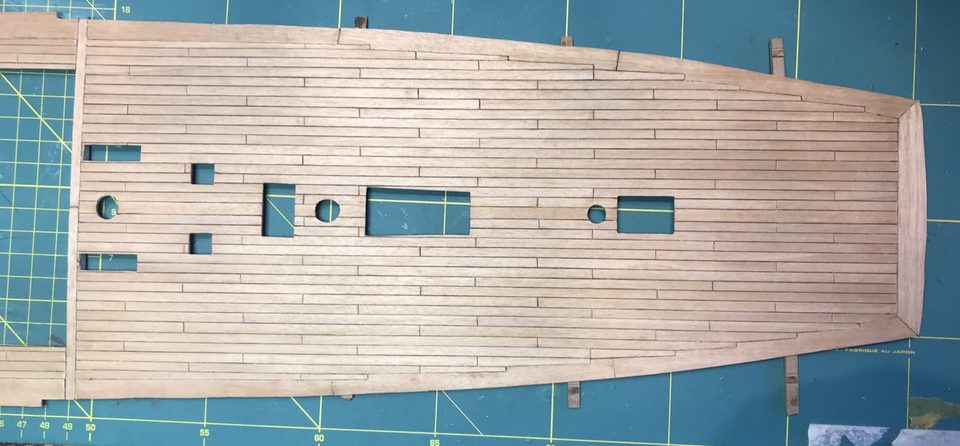

Detail of the deck
Detail of the deck

Oil

When I wanted to oil the deck, my oil turned out to have gone off. So ordered new (Rustins Danish oil). Hopefully it arrives reasonably quickly, because I want to oil the deck before I fit it. Once the oil is on, the colour should become a bit nicer still.

Piet advised being sparing with the oil: one thin coat gives the nicest result according to him, and rubbing it off straight away with a soft lint-free cloth or kitchen paper makes it better still. He never colours his decks himself, because that wasn’t done in reality either: decks were left untreated and went grey from weather and seawater. He only protects them with one coat of clear matt varnish. I am sticking with oil, in a thin coat, because I did that on the gun deck too.

Planking pattern

Herby63, self-described ‘millimetre chief’, asked why I had used a 0-1-3-2 planking pattern and not simply 0-1-2-3. I based the pattern on Zu Mondfeld. Earlier I wrote that I would use a four-butt shift, but it has become a three-butt shift. Herby’s conclusion: odd chap, that Zu Mondfeld.

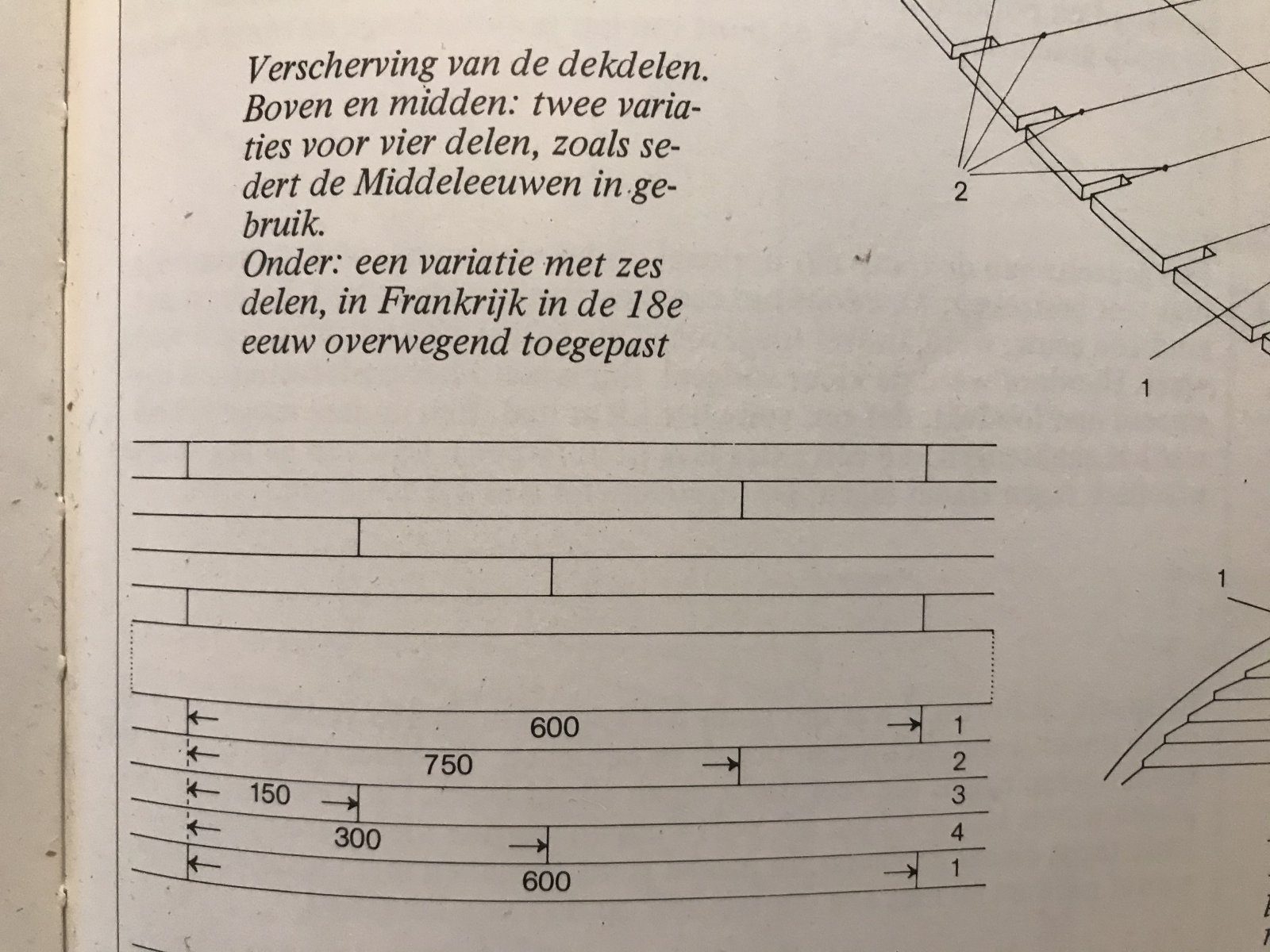

The planking pattern according to Zu Mondfeld, a three-butt shift
The planking pattern according to Zu Mondfeld, a three-butt shift
