Build log · Phase 5, Coppering

The hull is in copper

16 March 2019 · Milestone

They are on at last. Both sides of the hull are coppered, with many thanks to Piet for sending, free of charge, the plates I ran short of after starting over a number of times. Really great.

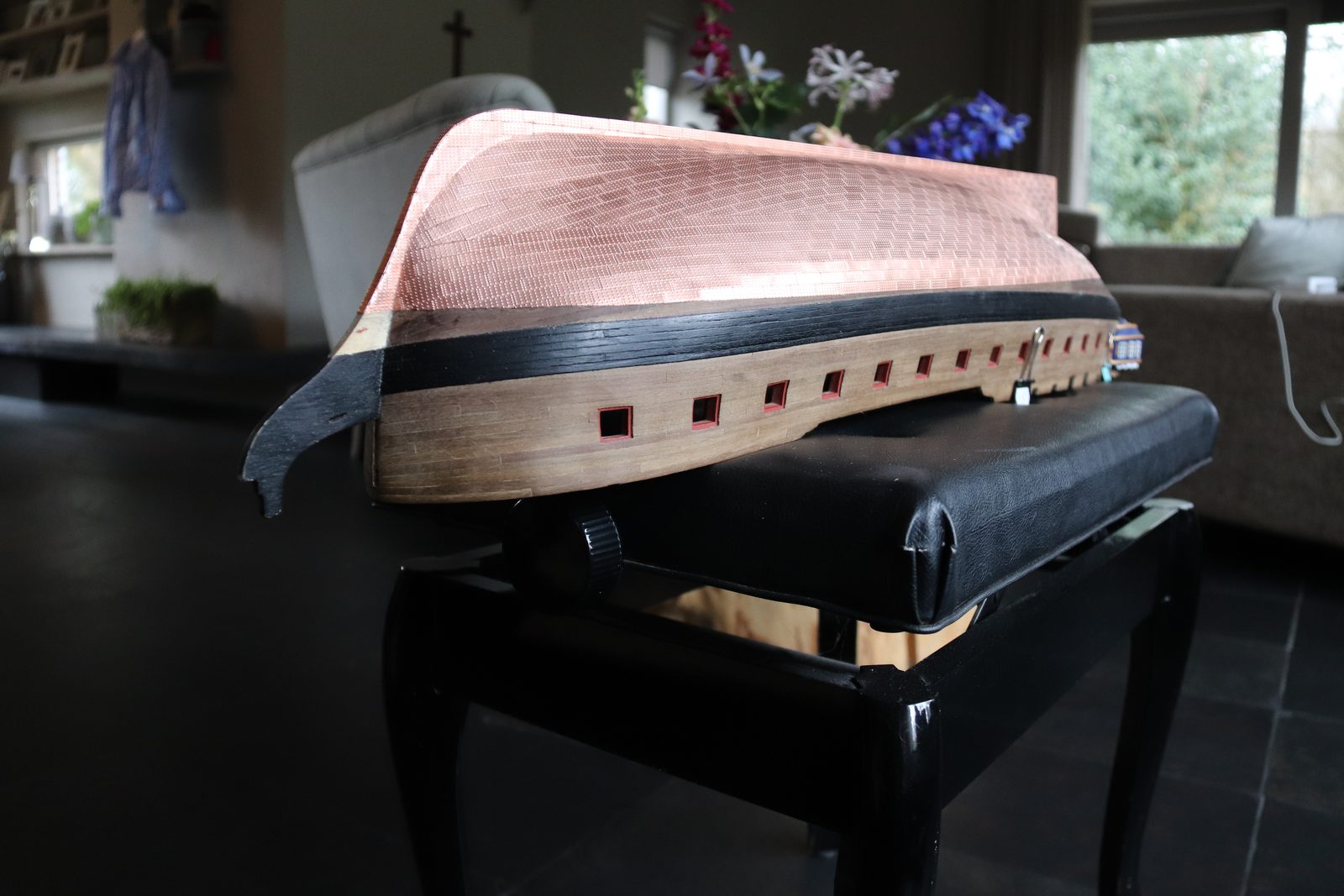

The hull fully coppered
The hull fully coppered

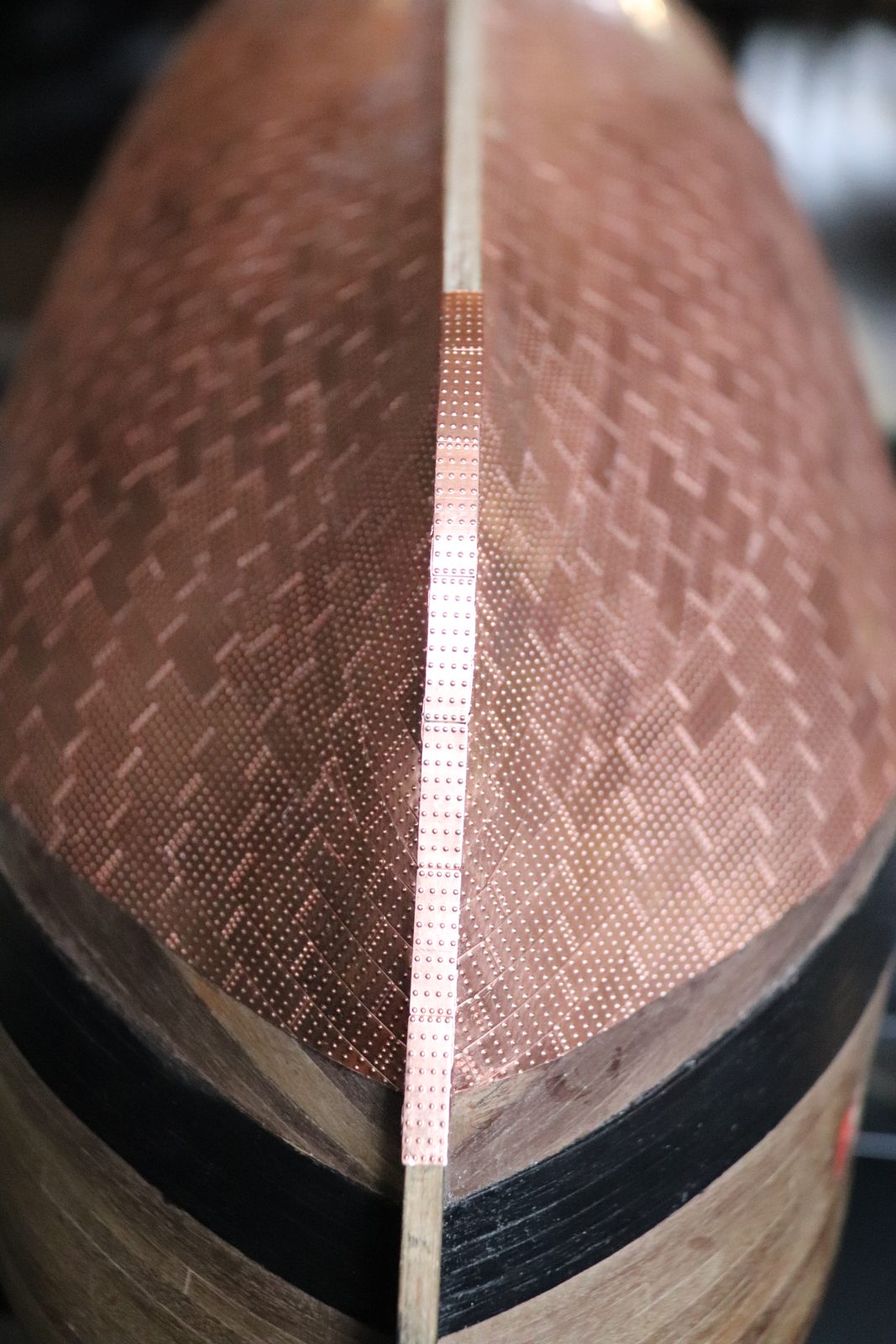

The coppering at the bow
The coppering at the bow

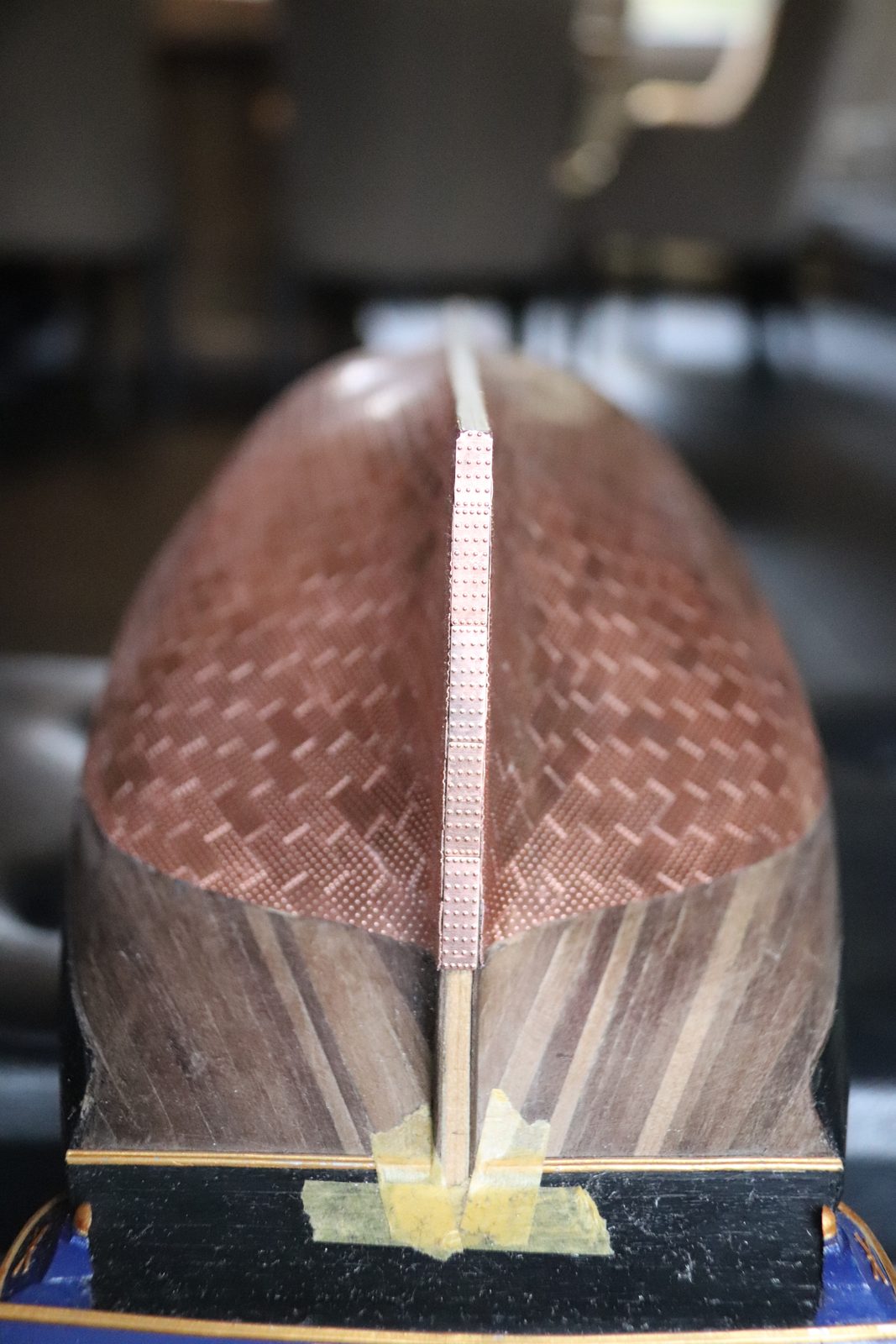

The coppering at the sternpost
The coppering at the sternpost

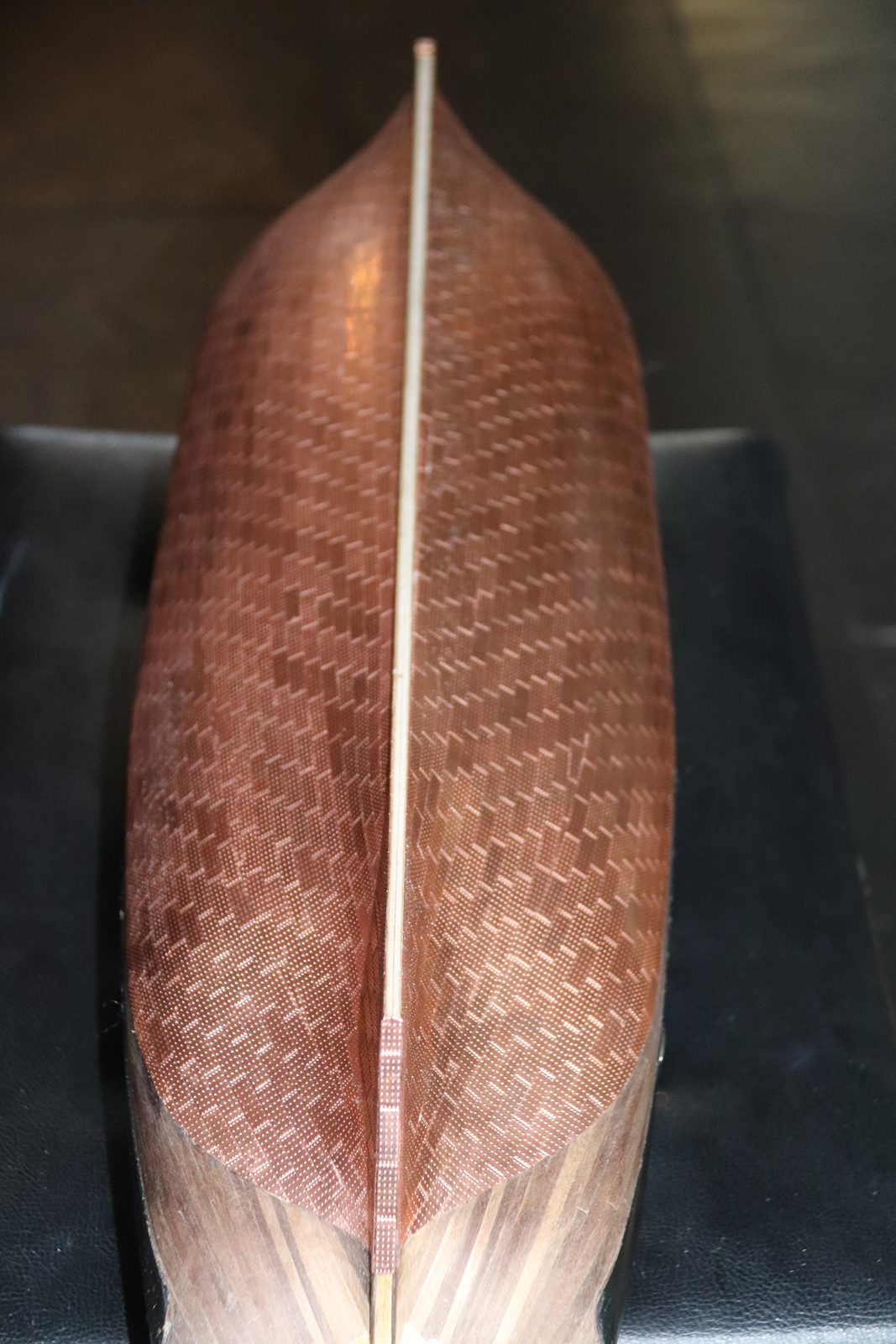

The hull in copper, from another angle
The hull in copper, from another angle

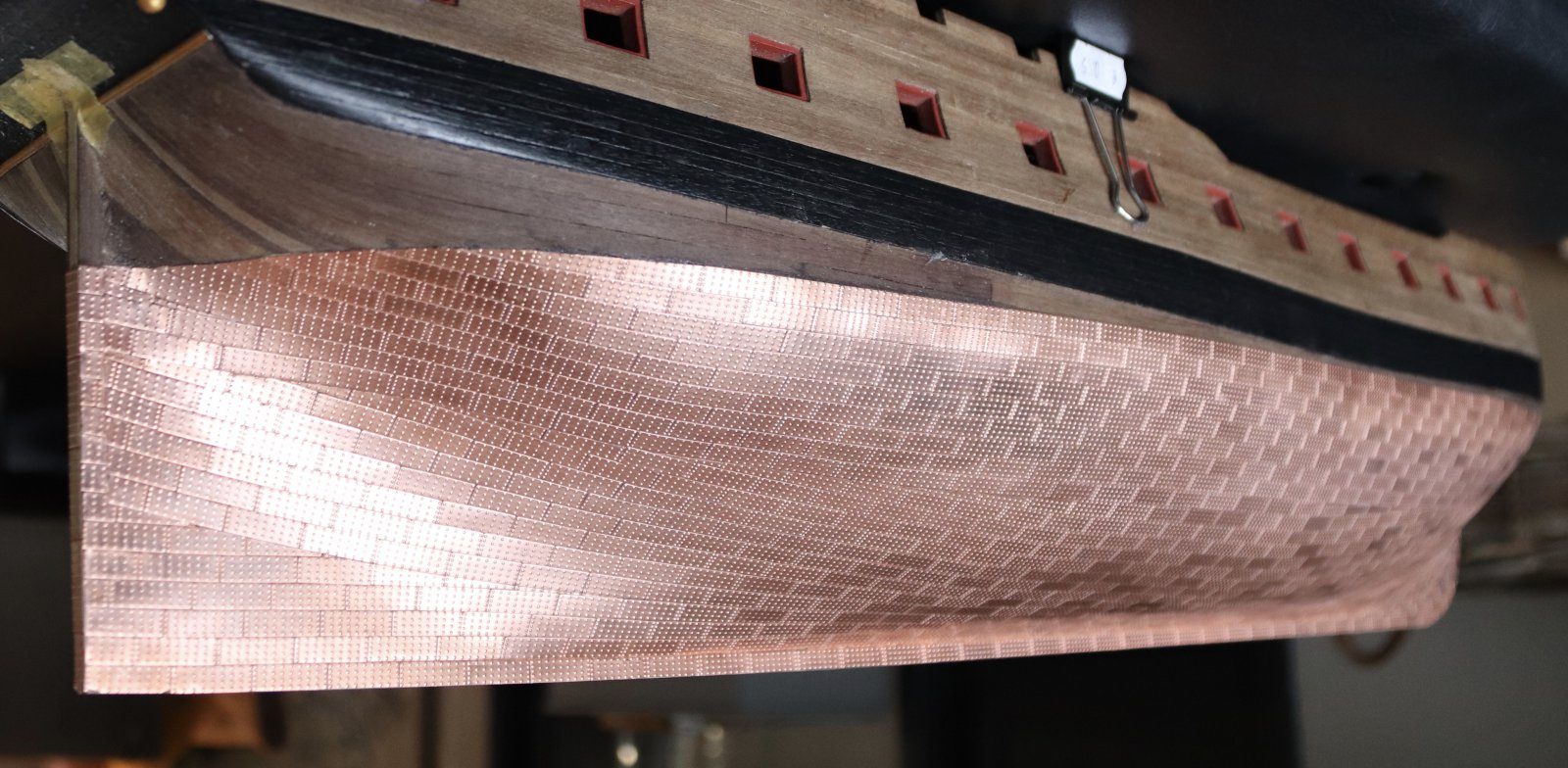

Overview of the result
Overview of the result

Looking back: started on 23 December, finished on 16 March. Almost three months for a job I had set aside a few months for, so that is not too bad, despite a complete restart after the first few hundred plates and a waterline that had to be redone twice. The lessons are in the previous log entries, but in short: make a plan and mark out the belts first, follow the strakes and not the straight line of the keel, copper down to the keel amidships first so that you keep whole plates, and at a gore line start from the bottom so that both sides come out level.

Now only the rudder. Then the plates are done and the ship can go upright again, for the mouldings.
