Build log · Phase 3, Hull planking

Port closed, starboard started

8 September 2018 · Milestone · How-to

After a long time, finally back to the planking. The first side of the underwater hull is now closed.

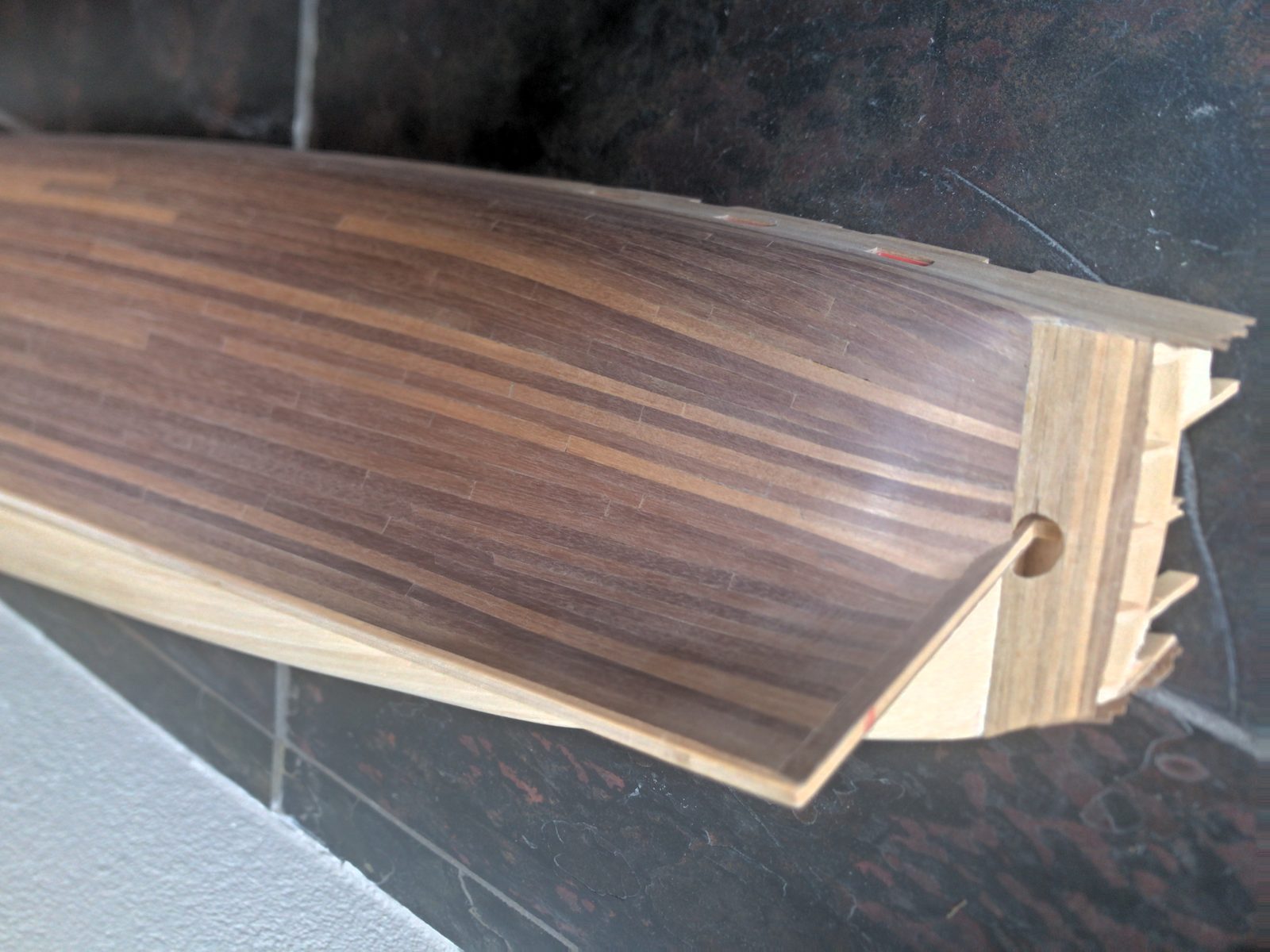

Port side of the second planking closed
Port side of the second planking closed

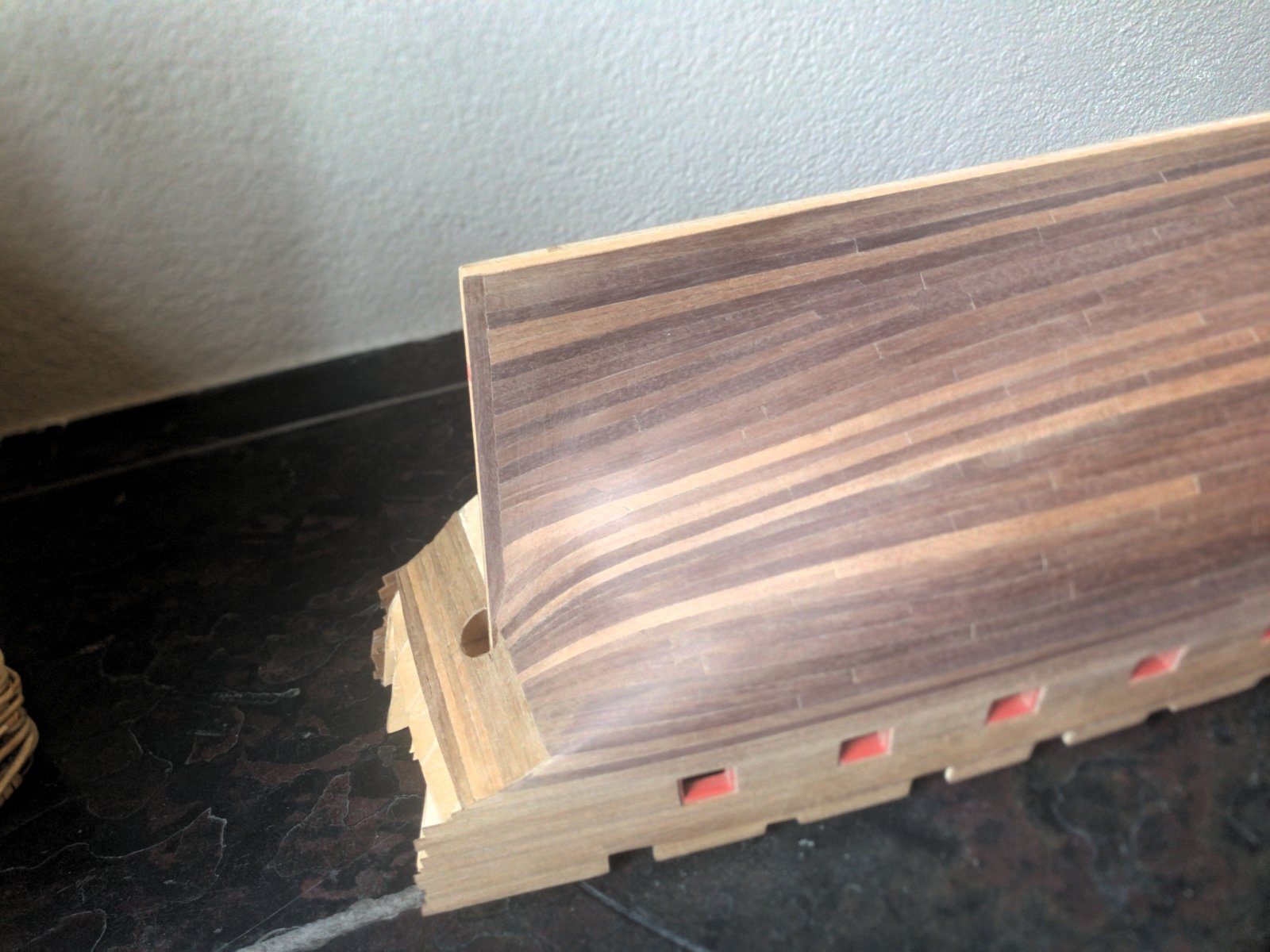

The bow with the drop planks
The bow with the drop planks
The underwater hull from the side
The underwater hull from the side

In the end the copper plates go over this. So I’ve decided not to fill every little seam below the waterline as I did above the wale, because none of it will be visible later anyway.

At the sternpost I still had to use four stealers to get everything closed. But you see very little of that.

The sternpost with four stealers
The sternpost with four stealers
Detail of the stealers
Detail of the stealers

The other side tackled differently

The next day I started on the starboard side. That side I’m tackling slightly differently. I’ve now divided the hull into four equal belts and work with seven planks per belt. So I calculate the taper per belt as well. Previously I did that for the whole hull, but that didn’t always work out well, as the clinker effect in May showed. Now let’s see whether it goes better this way.

Starboard divided into four belts, seven planks per belt
Starboard divided into four belts, seven planks per belt

Aft I’ve used one stealer again, just as on the port side. It’s hard to see in the photo because both planks are the same colour.

The stealer at the sternpost on the starboard side
The stealer at the sternpost on the starboard side
