Build log · Phase 3, Hull planking

One side closed

24 March 2018 · Milestone · Problem and fix

On Saturday one side was nearly closed. Aft I’ve managed with a single stealer so far, and I think one more will be needed. Forward it’s simply a matter of measuring and cutting the right width, which goes fairly quickly. As for the strips, I don’t quite come out even: the last one has to be a few millimetres narrower. No problem. Johan Verschuren is ahead of me again in the meantime; I’m in this for four or five years.

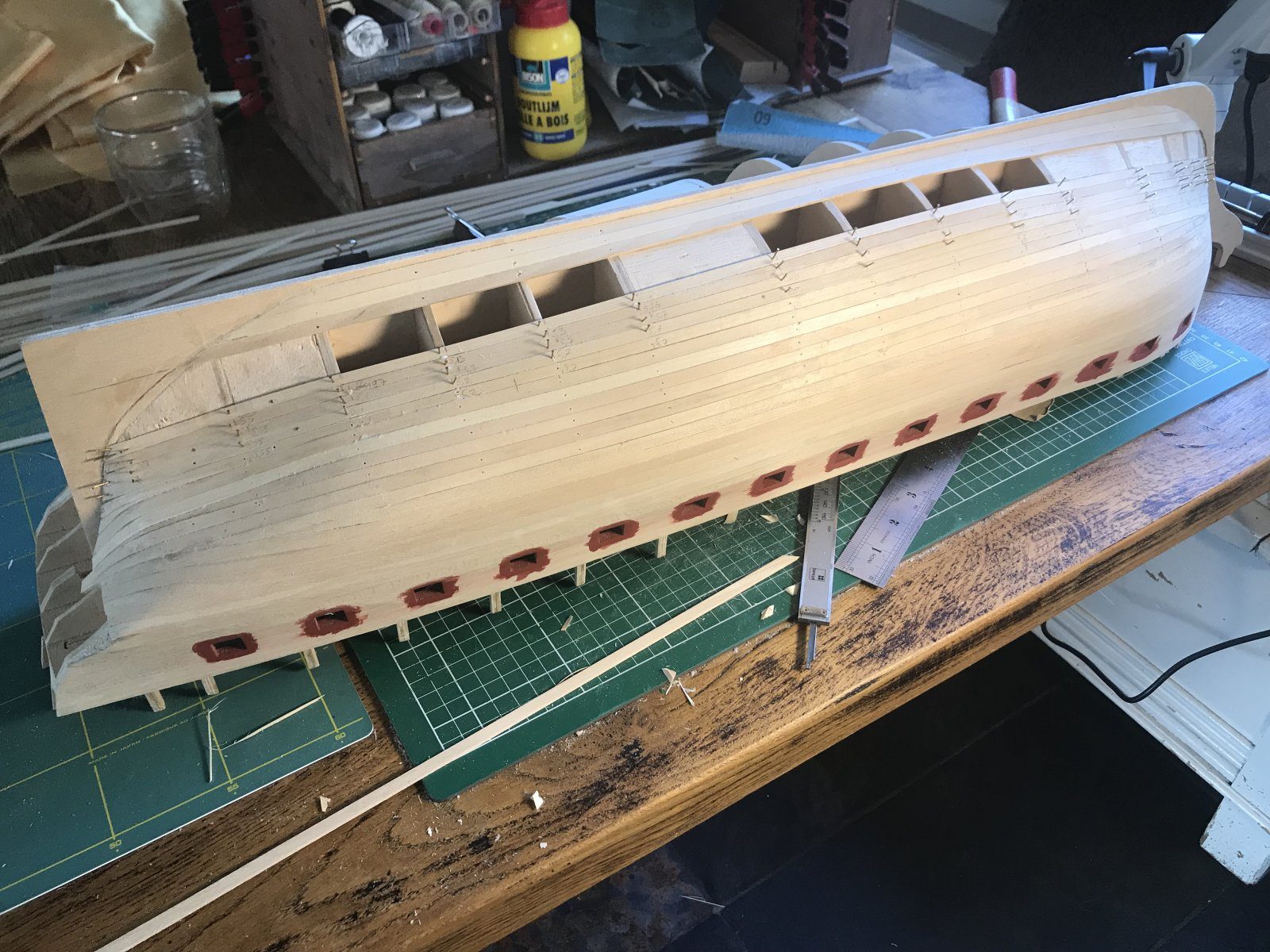

Starboard nearly closed, one strip to go
Starboard nearly closed, one strip to go

Sunday: the last strip fitted exactly. At the stern end it was precisely the right width, so I managed without a second stealer after all. The first side is closed. Now sanding. The lines will of course become a bit more flowing after sanding. I’m quite pleased with the bow, although there’s still a small kink in the curve. I’m sure I’ll sand that off.

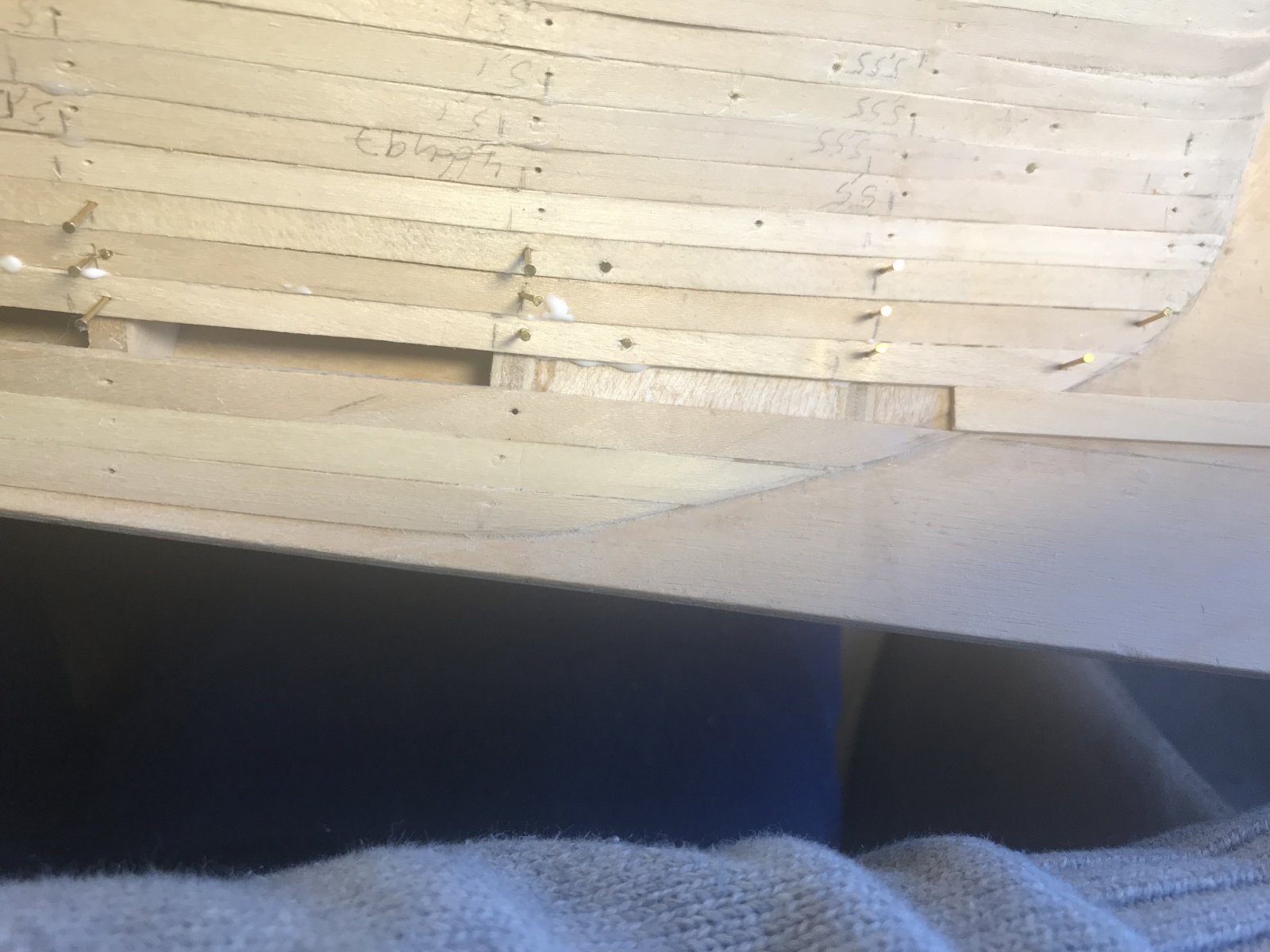

The last strip fits exactly
The last strip fits exactly

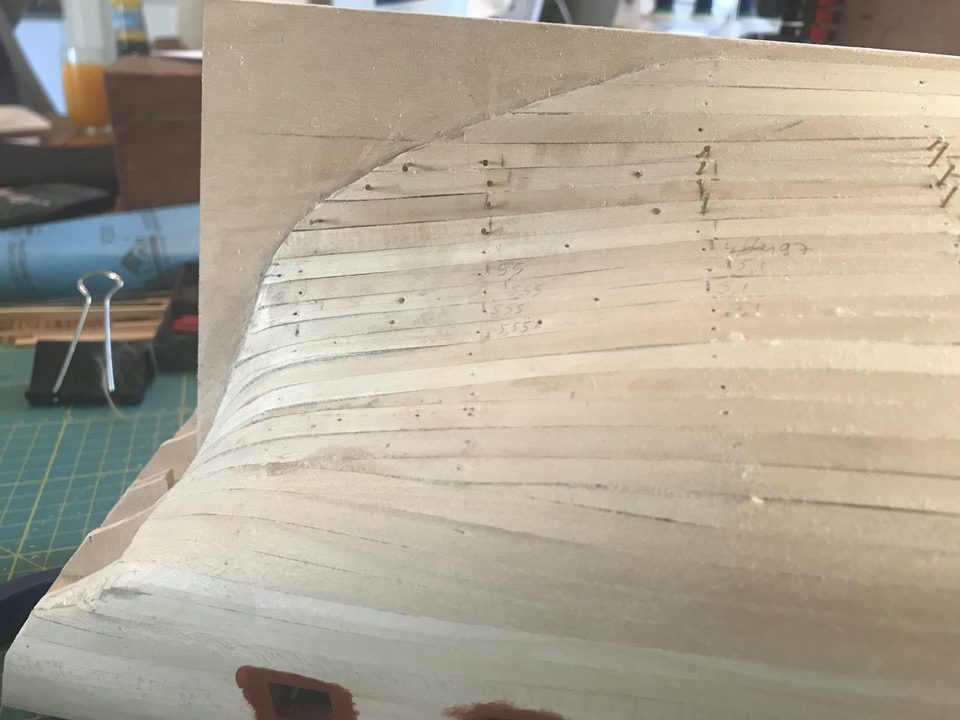

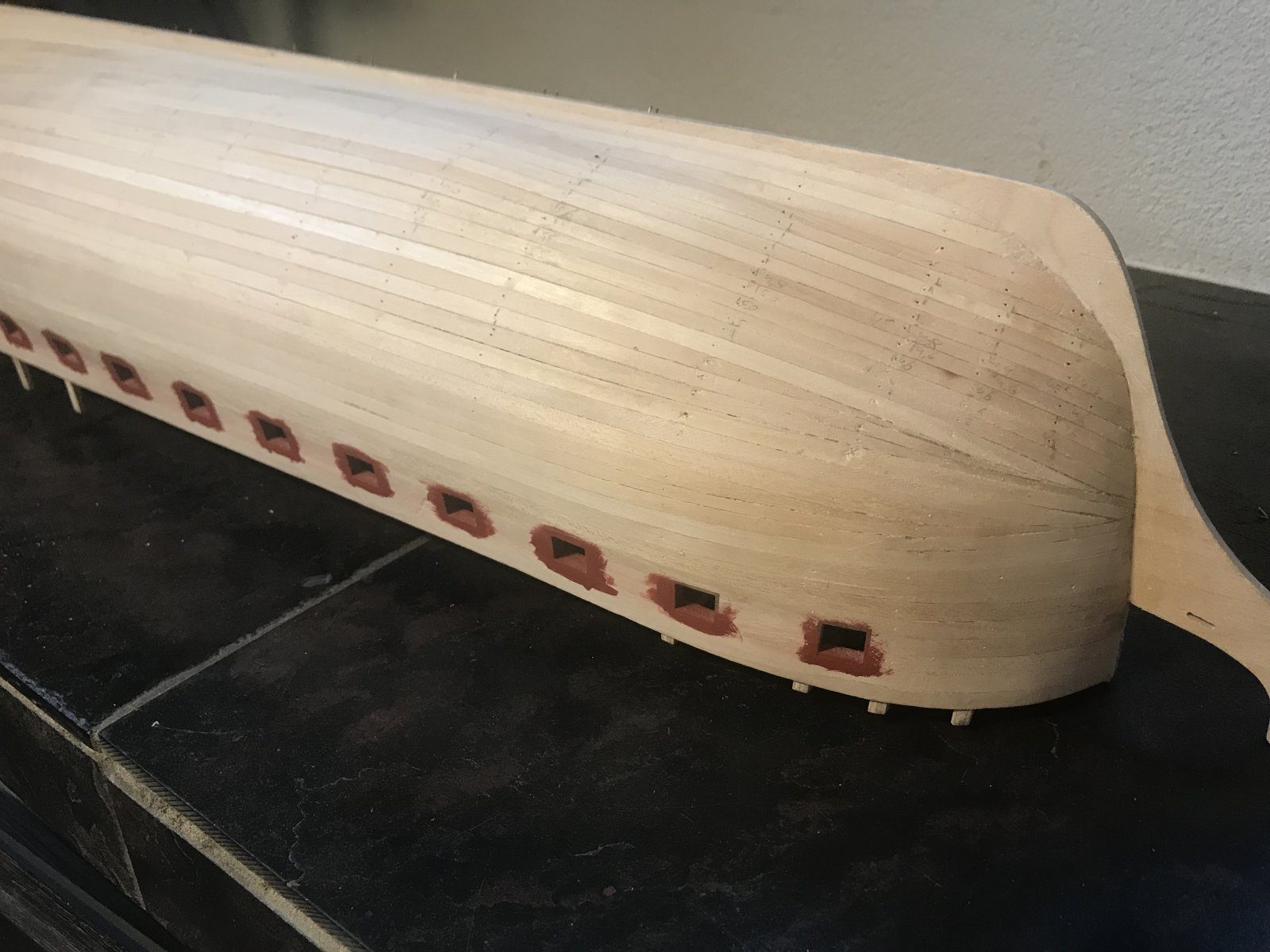

The first side of the first planking closed
The first side of the first planking closed

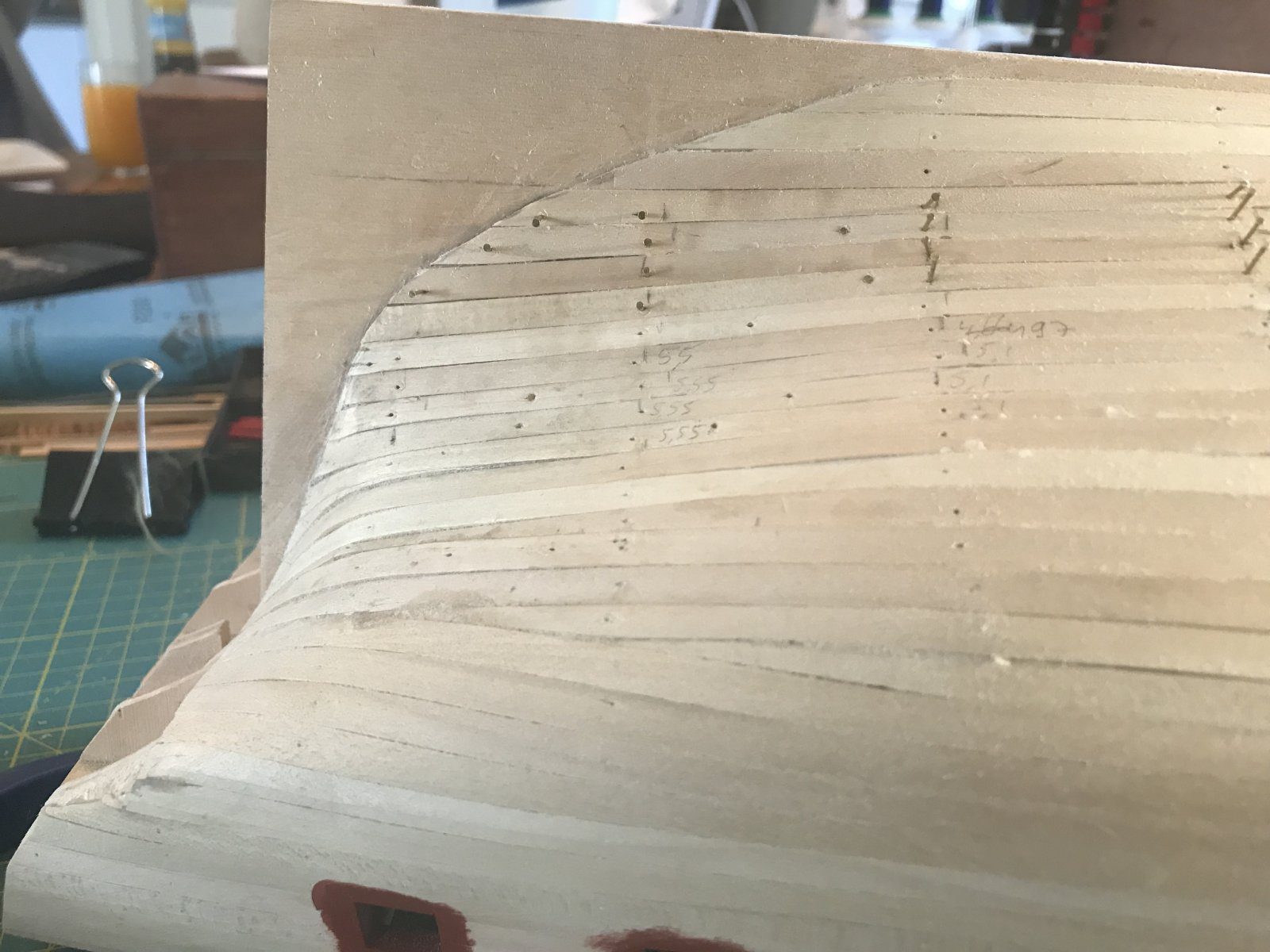

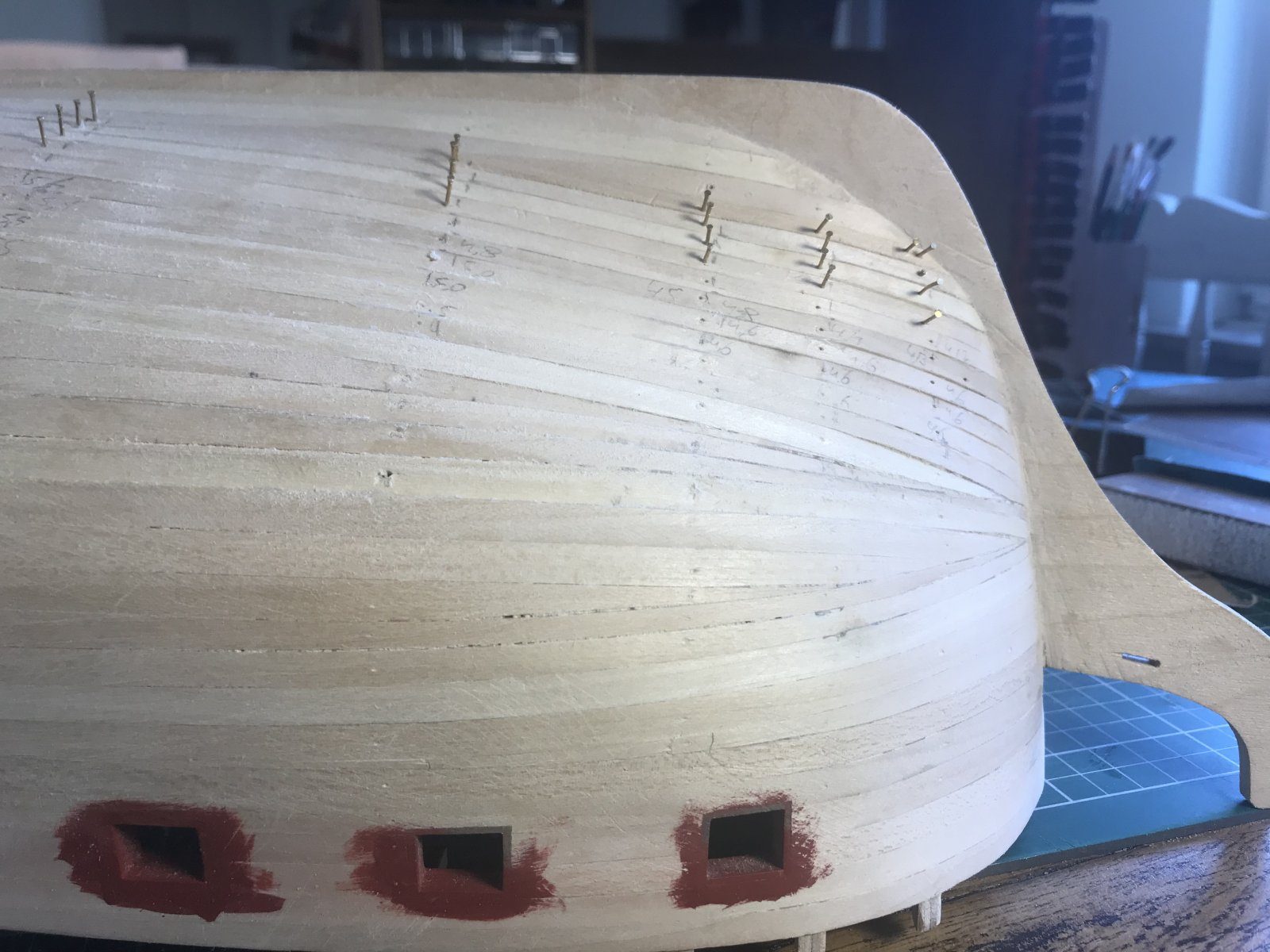

The bow, with a small kink in the curve
The bow, with a small kink in the curve

At the end of the weekend I did a little sanding already, only with 80 and 150 grit and only at the stern. Also made a start on the other side. I marked the lines at bow and stern with my vernier callipers: place the jaw on each side and transfer exactly the line as it runs on the other side. Curious to see whether that turns out right.

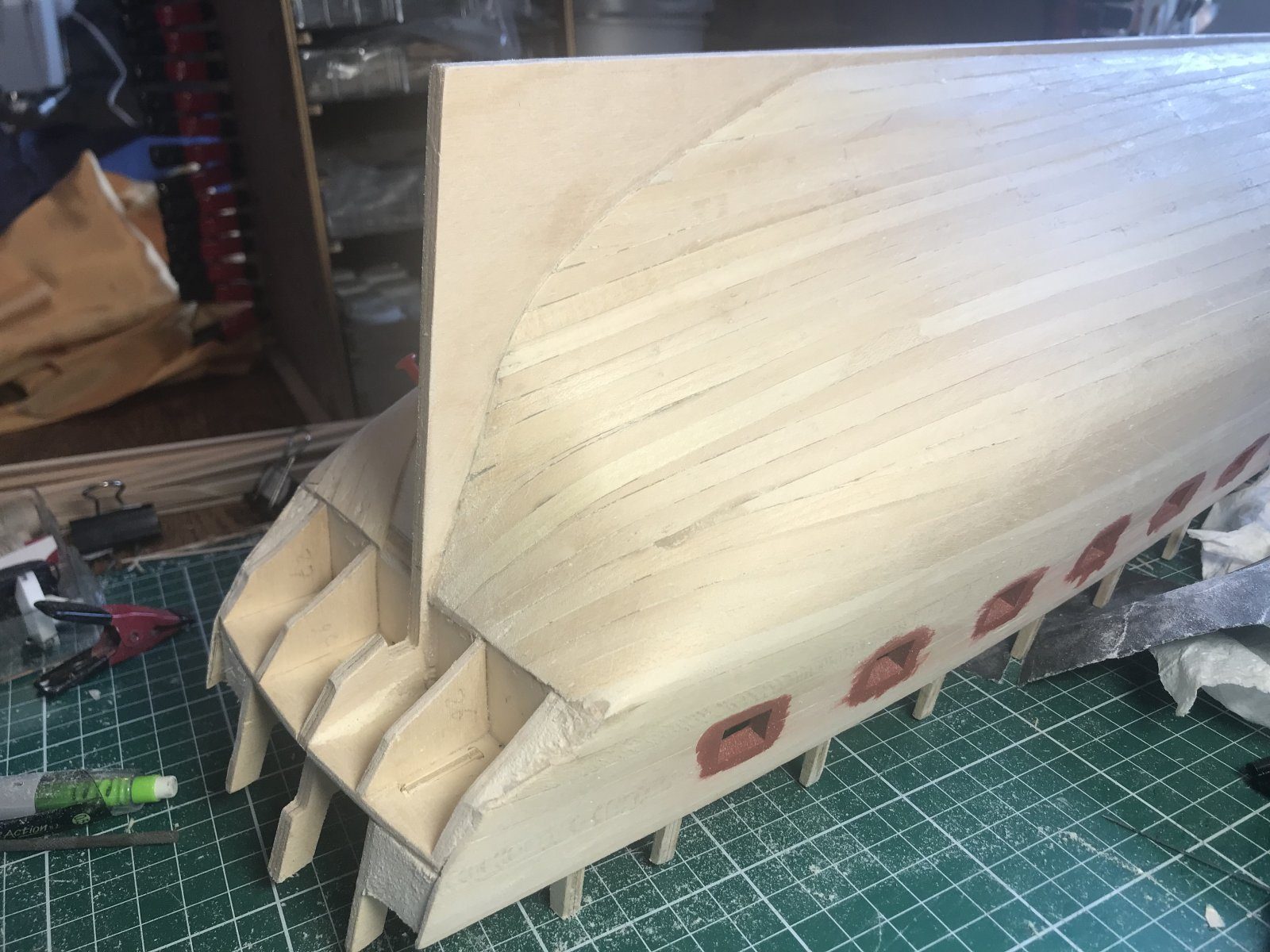

The stern roughly sanded with 80 and 150 grit
The stern roughly sanded with 80 and 150 grit
The line of the bow transferred with the callipers
The line of the bow transferred with the callipers

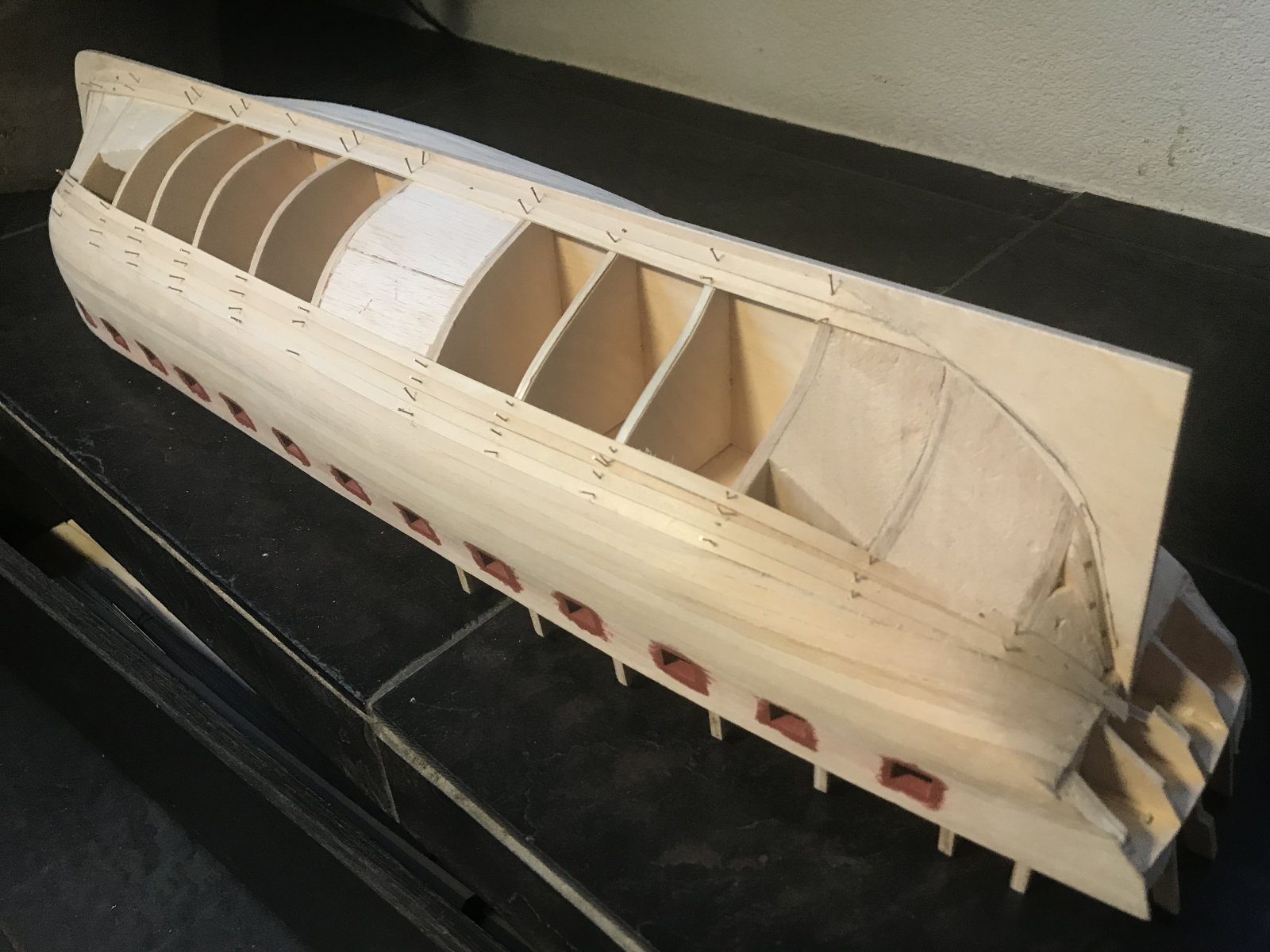

Start of the other side
Start of the other side

Incidentally, I was two whole strips short, so I made two new ones out of four offcuts. Piet found that odd; he had about ten left over with Caldercraft. Then again, he always halves his strips before fixing them, and half strips I did still have.

Piet also warned against planking one side at a time: it can make the hull warp. I’ve kept a close eye on the hull and it is still dead straight. I secretly just wanted to have something finished this weekend. Piet couldn’t resist pointing out that ‘just wanting to get something finished’ is usually where mistakes are born.
