Build log · Phase 1, Keel and bulkheads

Stern filled, one side as good as done

30 September 2017 · How-to

Hans Groenenberg gave a tip for the filler blocks: next time glue them roughly onto the keel first and only then file and sand them fully to shape. I followed that advice for the stern: glued the blocks in and only then filed and sanded. That works a lot more easily than fitting loose blocks. Also a photo of the bow, to show that the balsa runs on nicely there and that there is only a small gap between the balsa and the bulkhead.

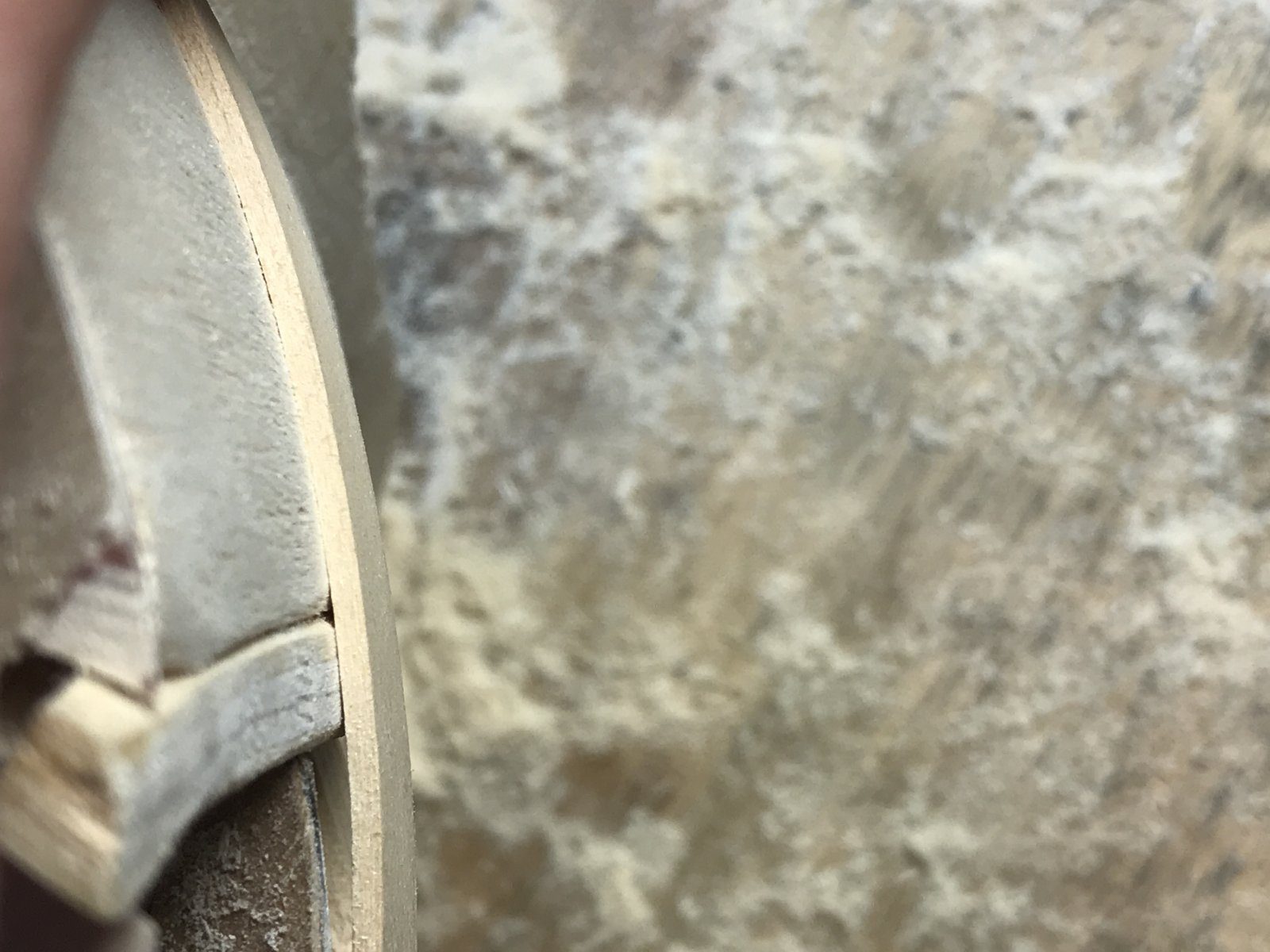

Bow: a small gap between balsa and bulkhead
Bow: a small gap between balsa and bulkhead

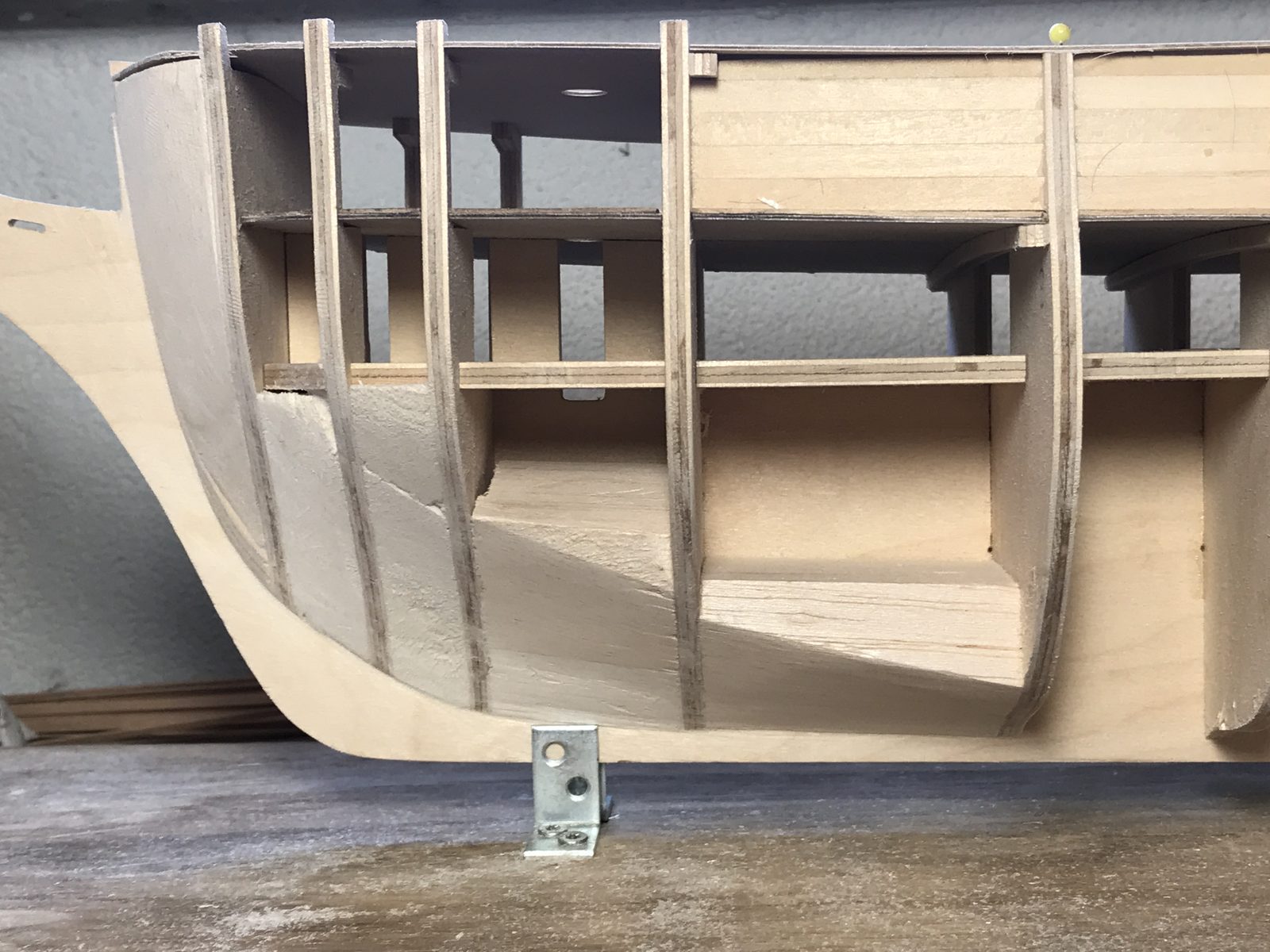

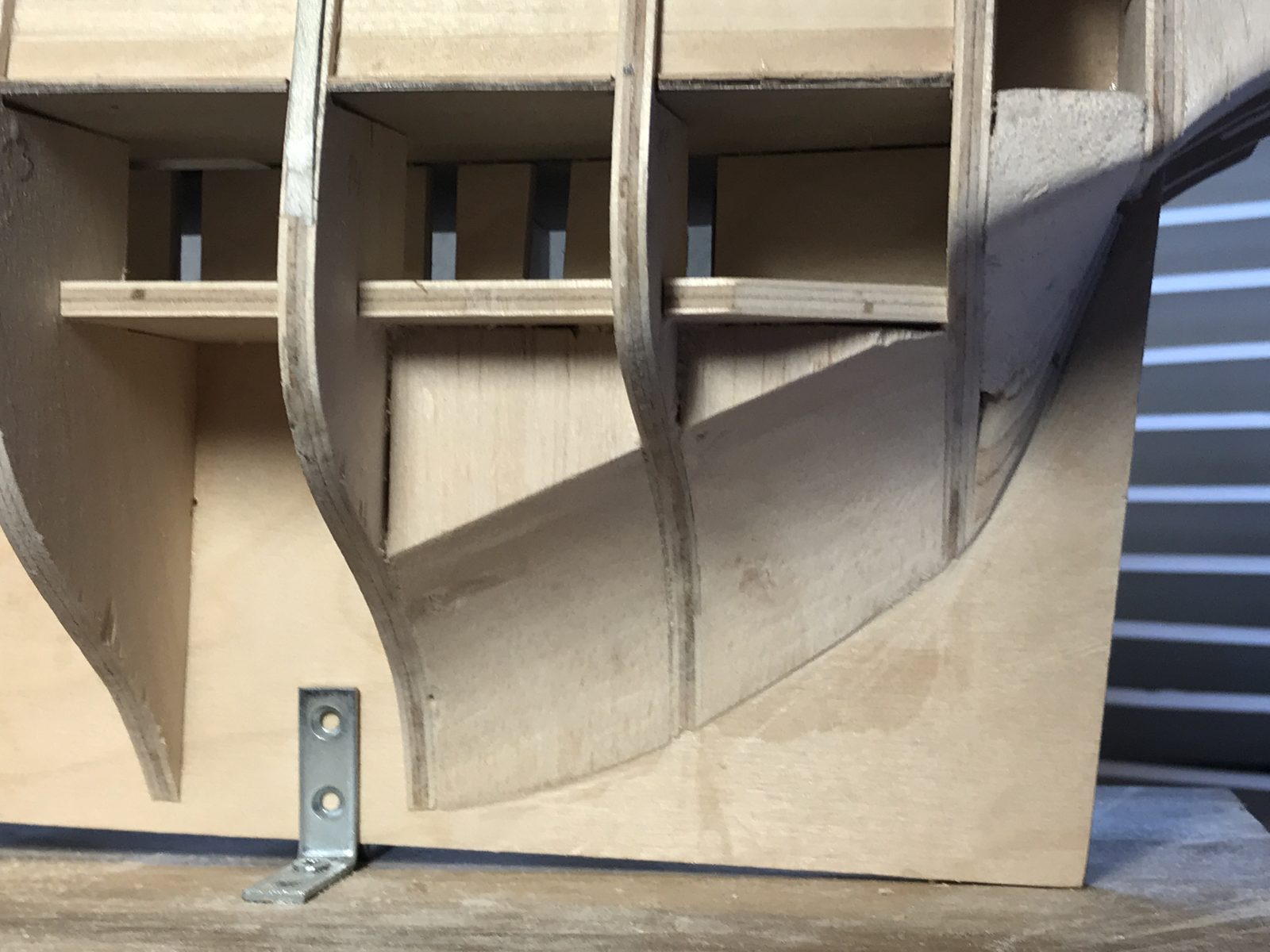

Stern: glued first, then filed and sanded
Stern: glued first, then filed and sanded

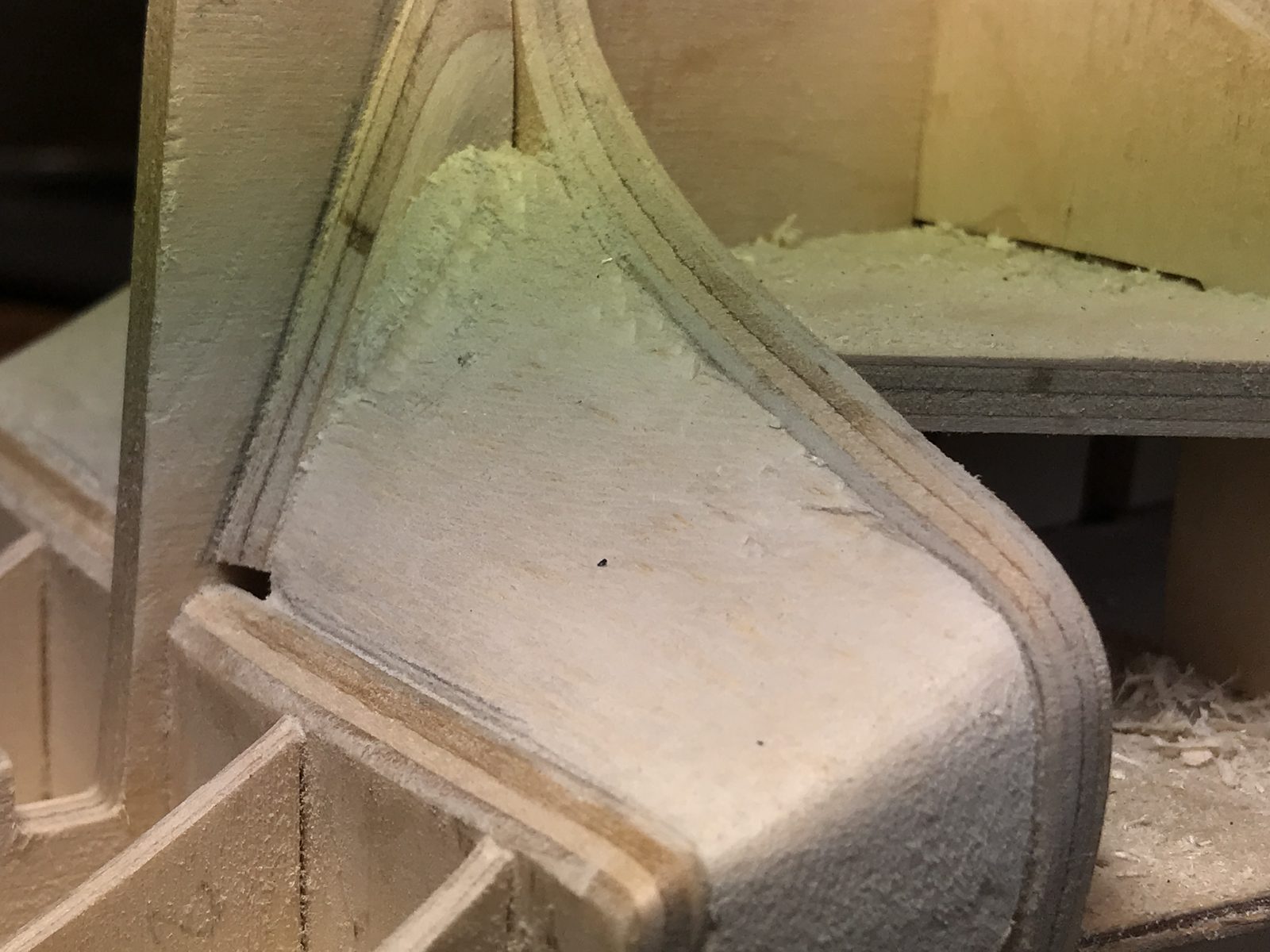

The stern with the filler blocks
The stern with the filler blocks

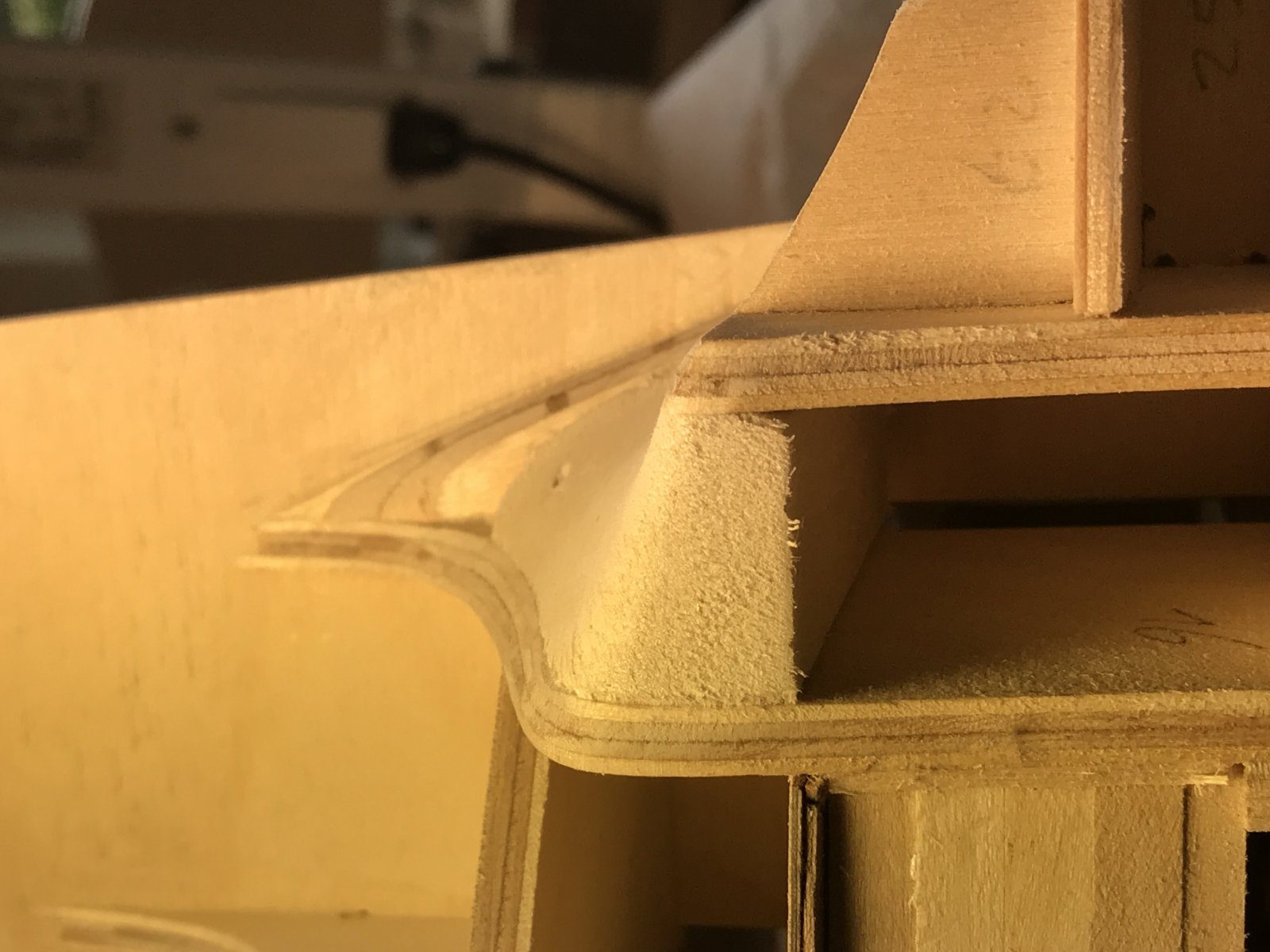

Detail of the transition to the counter
Detail of the transition to the counter

Then a question to the forum about the bow line: does it curve enough? What I actually meant was the underside, the line where the bow meets the keel (which presumably isn’t called the bow line). I have no idea how this is going to turn out when planking. Piet was honest: you can’t tell from a photo, you have to check that yourself with a batten. In the photo it looked fine to him, and if it were completely off it would surely show. He was glad I was taking trouble over this, because the better the planks will lie against it later. So I’m keeping this line and will try to mirror it on the other side.

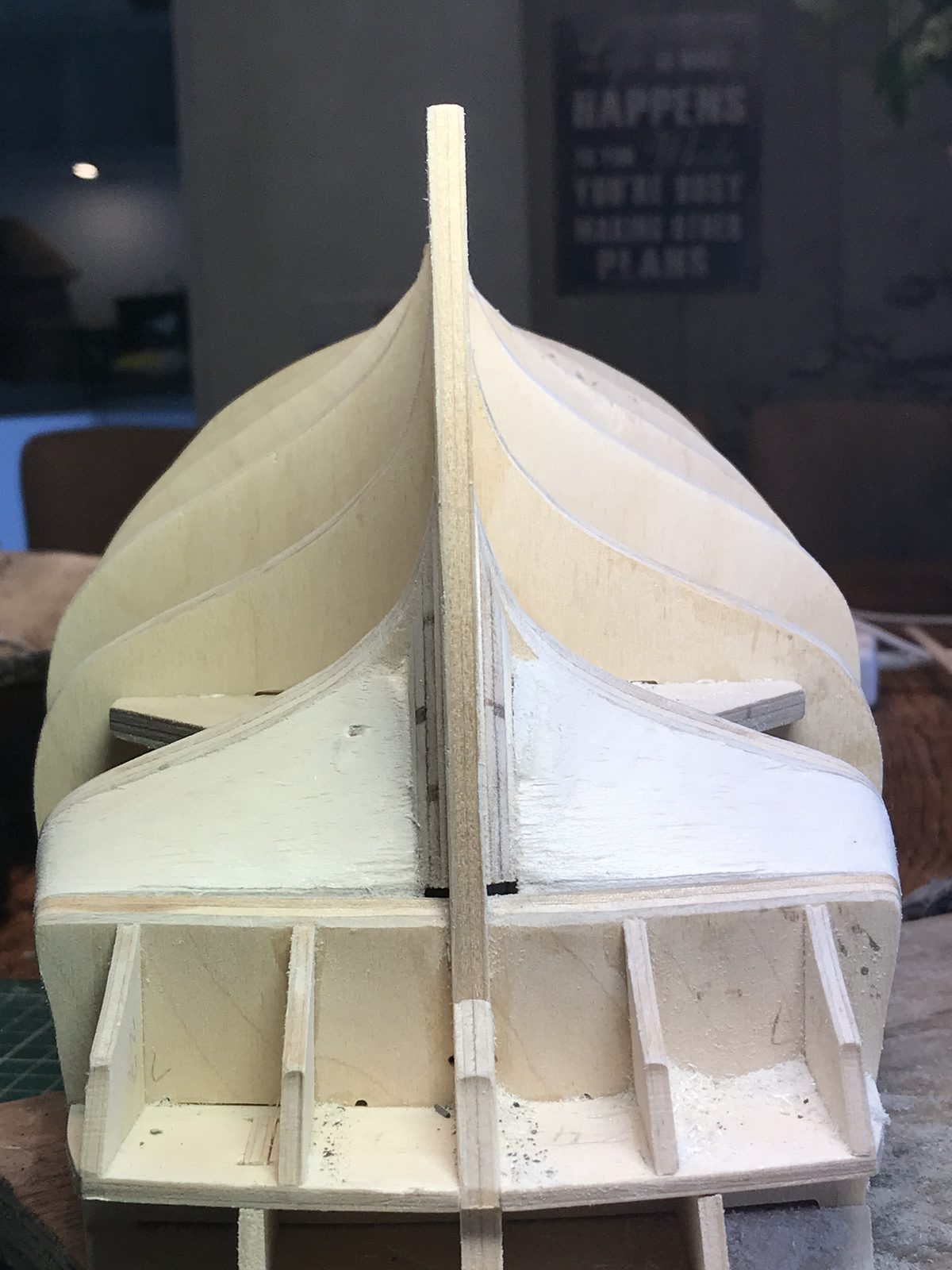

The underside of the bow, where the bow meets the keel
The underside of the bow, where the bow meets the keel

I rather like this balsa, so I’m carrying on with it for a while. On Sunday one side was as good as done. Now for the other side.

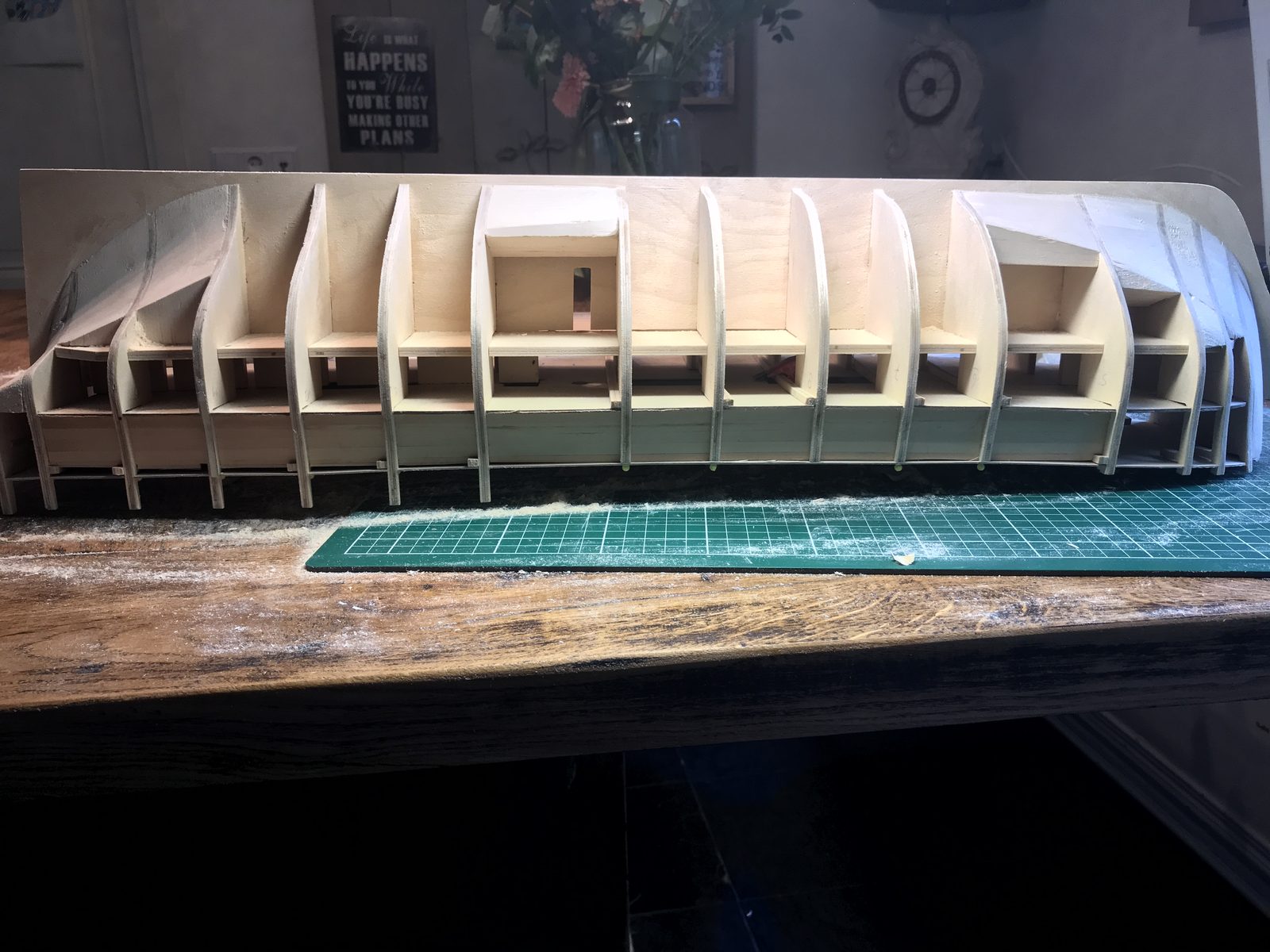

One side as good as done
One side as good as done

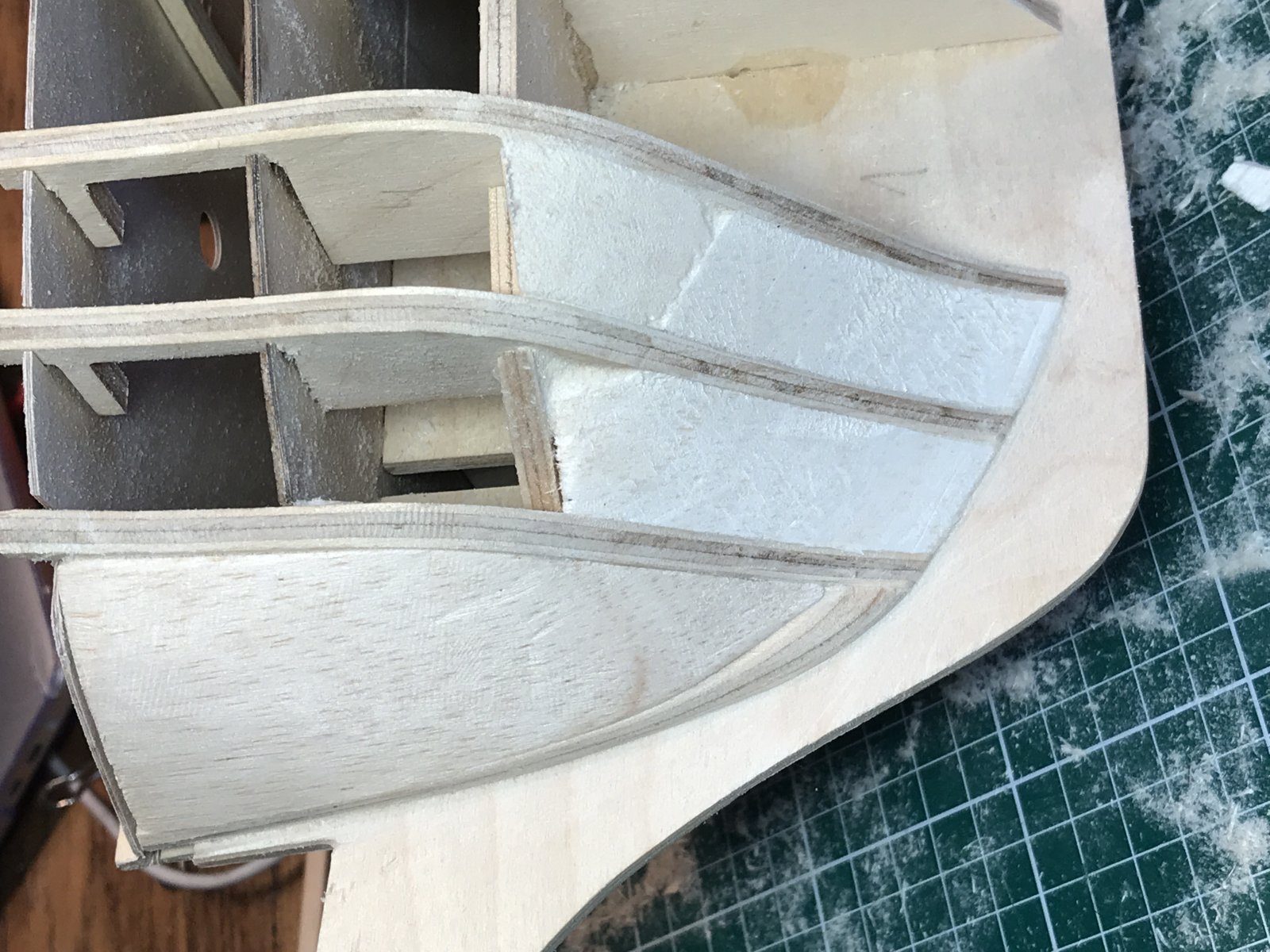

Filler blocks between the bulkheads
Filler blocks between the bulkheads
Filler block at the stem
Filler block at the stem
