Build log · Phase 2, Planking the gun deck

The gun deck is finished

23 September 2017 · Milestone · Problem and fix

The gun deck is finally finished. The second half turned out better than the first, but in the end that won’t be visible anyway. When putting the deck back in place it unfortunately broke in two after all. As a result there is a slightly wider caulking seam here and there in the middle, but thankfully that too disappears under the upper deck. It was quite a job, though.

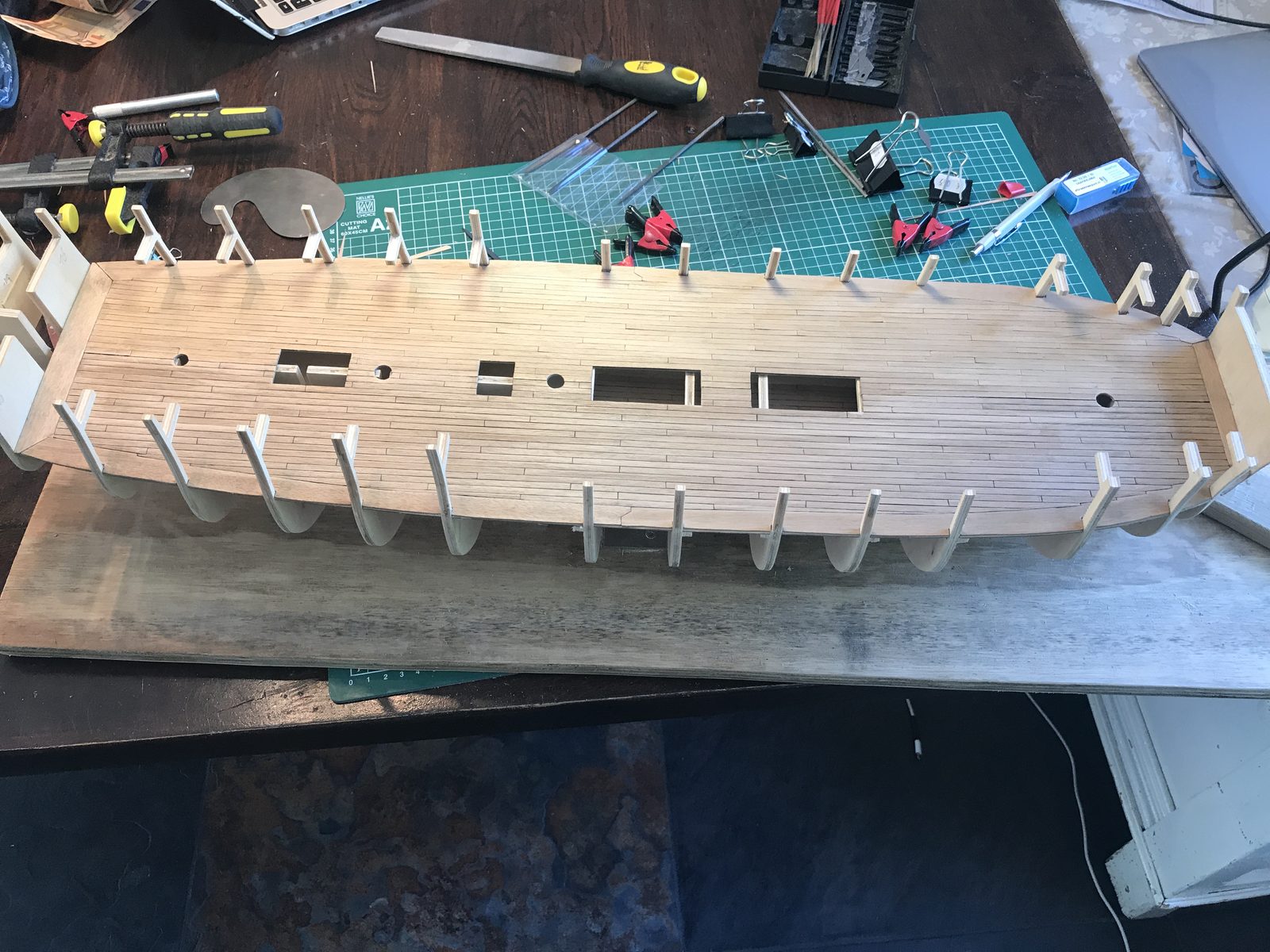

The planked gun deck on the bulkheads
The planked gun deck on the bulkheads

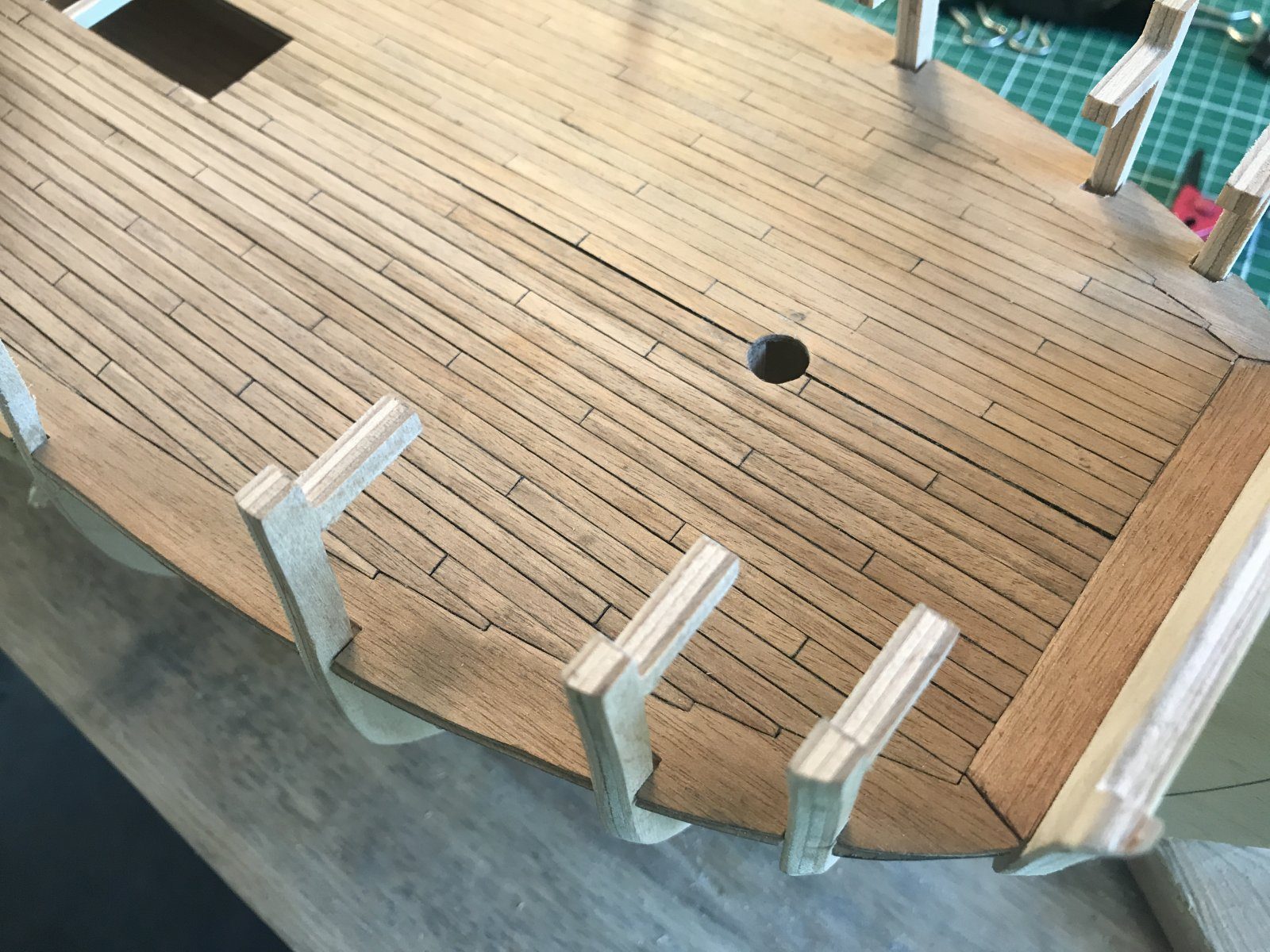

The bow with the margin plank and the joggling
The bow with the margin plank and the joggling

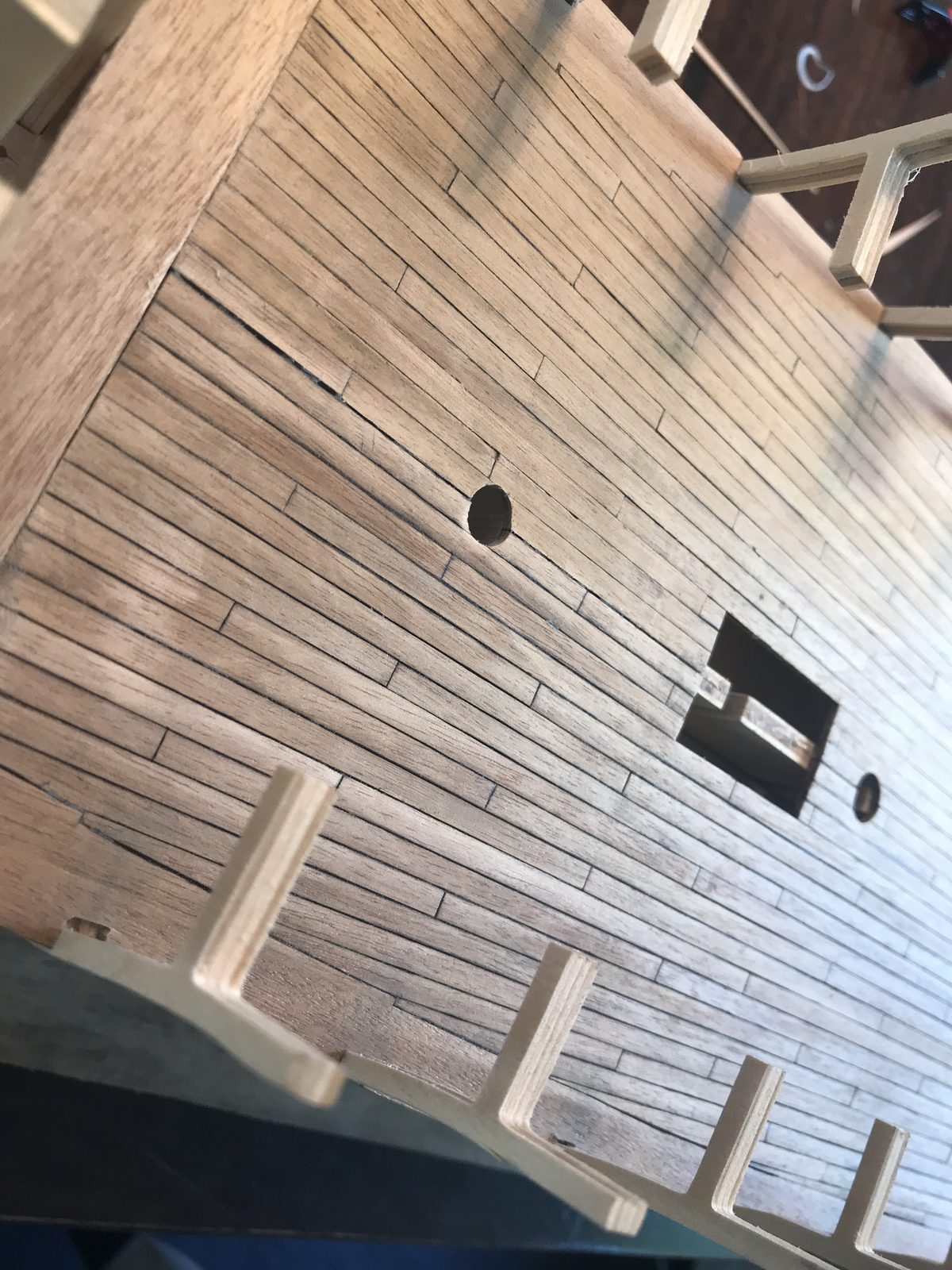

Amidships, with the seam where the deck broke
Amidships, with the seam where the deck broke

Piet thought it looked neat, but pointed out that fitting a completely planked deck between the bulkheads without damage or breakage is practically impossible. Better to cut or saw the deck in two before planking, or simply plank it on the ship. I had in fact already cut the deck most of the way through before fitting it, hoping it would just about stay in one piece. Alas, cut a bit too deep, I think.

Piet and Pingu57 also thought it a bit of a pity that there is some difference in texture and colour between the two halves. There is, but I’m betting it won’t be that visible. For the upper deck, at any rate, I now know the right method: glue one plank at a time, and cut the deck in two beforehand.
